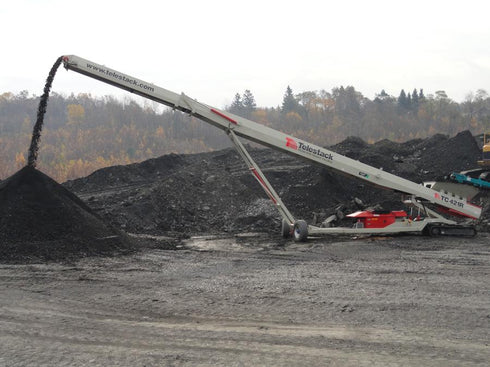

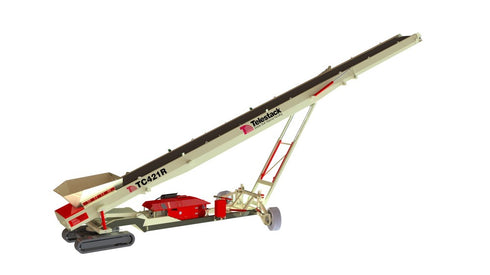

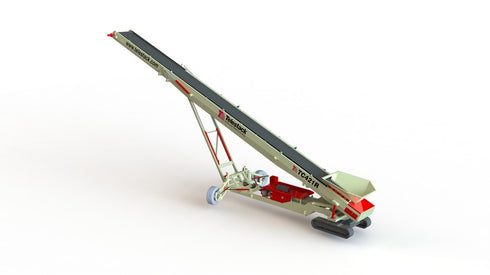

TC421R Aggregate Conveyor

Name: TC421R Aggregate Conveyor
Brand: Telestack
Availability: InStock

PRODUCT TYPE: Track Conveyor

VENDOR: Telestack

Add To Compare Added To Compare

CLICK HERE to download brochure

CLICK HERE to view video

DESCRIPTION

Telestack offer the widest range of Tracked Radial Stockpiling Conveyors in the industry: lengths from 15m (50ft) to 31m (101ft), tonnages of 100 tph up to 1500tph and lump sizes up to 300mm (12”).

The mobility and flexibility of the stockpiling conveyors reduces / eliminates to use of a wheel loader on site; Reduces fuel, labor and maintenance costs by up to 80% and Reduces contamination in stockpiled material due to less material handling.

Features

Output Potential: up to 440 US tph
42” x 70’ belt radial conveyor
Deutz 38hp air cooled engine
Raised hexagonal feedboot to reduce spillage
Heavy duty structural steel radial arms
Hydraulic folding tail / head section
6’ x 16” heavy duty tracks tracks
Larger stockpile capacity over std non radials
Suitable for barge loading
Hydraulic tail section height adjustment while maintaining head drum height

Options

Dual power ( electric driven belts)
All electric conveyor
Radio remote control
Upgrades for 0-12” material
Dust covers / Suppression
Belt weighers
Feedboot extensions
Anti roll back measures

Specification Table

**TC421R**
Weight (Est)	34,835lbs
Transport width	8' 4”
Transport length (head folded)	50’3”
Transport height ( head folded)	10'
Discharge height	28’11”
Stockpile capacity	9,982yd3 / 13,460t
