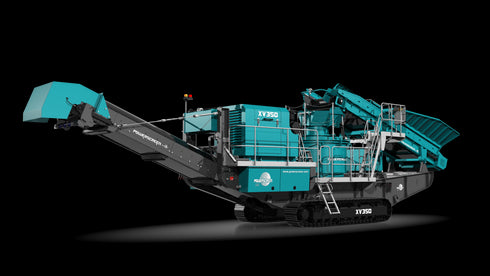

Powerscreen XV350

PRODUCT TYPE: VSI Crusher

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video

DESCRIPTION

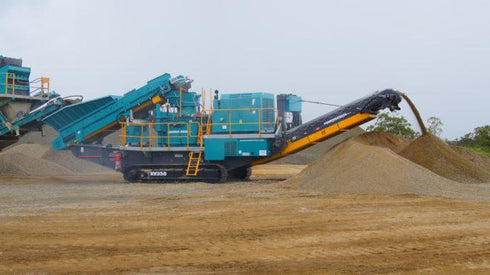

The Powerscreen® XV350 vertical shaft impactor has been designed for users who require a plant that excels at producing high specification, shaped product. With a range of crushing configurations available, the XV350 is versatile, productive and suitable for a number of applications including road building, concrete manufacture, manufactured sand, slag, and glass recycling.

    Features & Benefits
    • Output Potential: up to 350 tph (386 US tph)
    • Exceptionally versatile due to interchangeable crushing configurations
    • Excellent product shape
    • Hydraulic lid lift mechanism for quick and safe maintenance of wear parts
    • Proven Terex Canica® 2050 VSI crusher
    • Feed regulator for optimum feeding which stops the feed belt if a blockage occurs
    • Variable speed feed belt
    • Automatic crusher lubrication system with temperature and flow analysis
    • Heavy duty chassis and track frame
    • Hydraulic water pump
    • Dust suppression system
    • Vibration Sensory Monitoring (VSM)
    • Economical to operate with a highly fuel efficient direct drive system
    Options
    • Feed hopper extension plates
    • Feed hopper level sensor
    • Product conveyor belt weigher with wheel speed
    • Electric refuelling pump
    • Radio remote control
    Specification Table
    XV350
    Weight 36,900kgs (81,350lbs)
    Transport width 3.0m (9'10")
    Transport length 15.45m (50'8")
    Transport height 3.85m (12'8")
    Working width 3.85m (12'8")
    Working length 15.6m (51'2")
    Working height 4.6m (15'1")



    * All information subject to machine configurations & specifications ordered.

    ** Powerscreen reserves the right to change specifications without prior notice.
