SandMAX delivers precise classification to produce SPEC C33 concrete sand

“Without the SandMAX we would not have been able to meet production demands nor meet the tight C33 concrete spec” said Tom from Whit Sand & Gravel

Whit Sand & Gravel are a substantial player in the Aggregates business producing washed spec sand & gravels.  After a plant overhaul which lead to an increase in production, the existing sand screws were proving to be the limiting factor in the process.

The sandscrews were already loosing a portion of saleable sand to the pond prior to the plant overhaul.  After this upgrade, the sandscrews were overwhelmed and were working at less than 85% efficiency.  It meant for every 100tons sent to the sand screw, 15 tons of this ended up in the pond.

The knockon affect was the multi bay pond system was filling up too quickly with lost sand, silts and clays which inhibited natural settling of the particles to produce clean water.  The water which was sent back to the Washplant was dirty and caused the nozzles to block up and throw the washed material out of spec.  The ponds had to be cleaned out on a more frequent basis to prevent this from happening thus occurring more cleanout and maintenance costs.  The plant also had to be shut down during some periods of pond cleanout which resulted in lost revenue for the company.

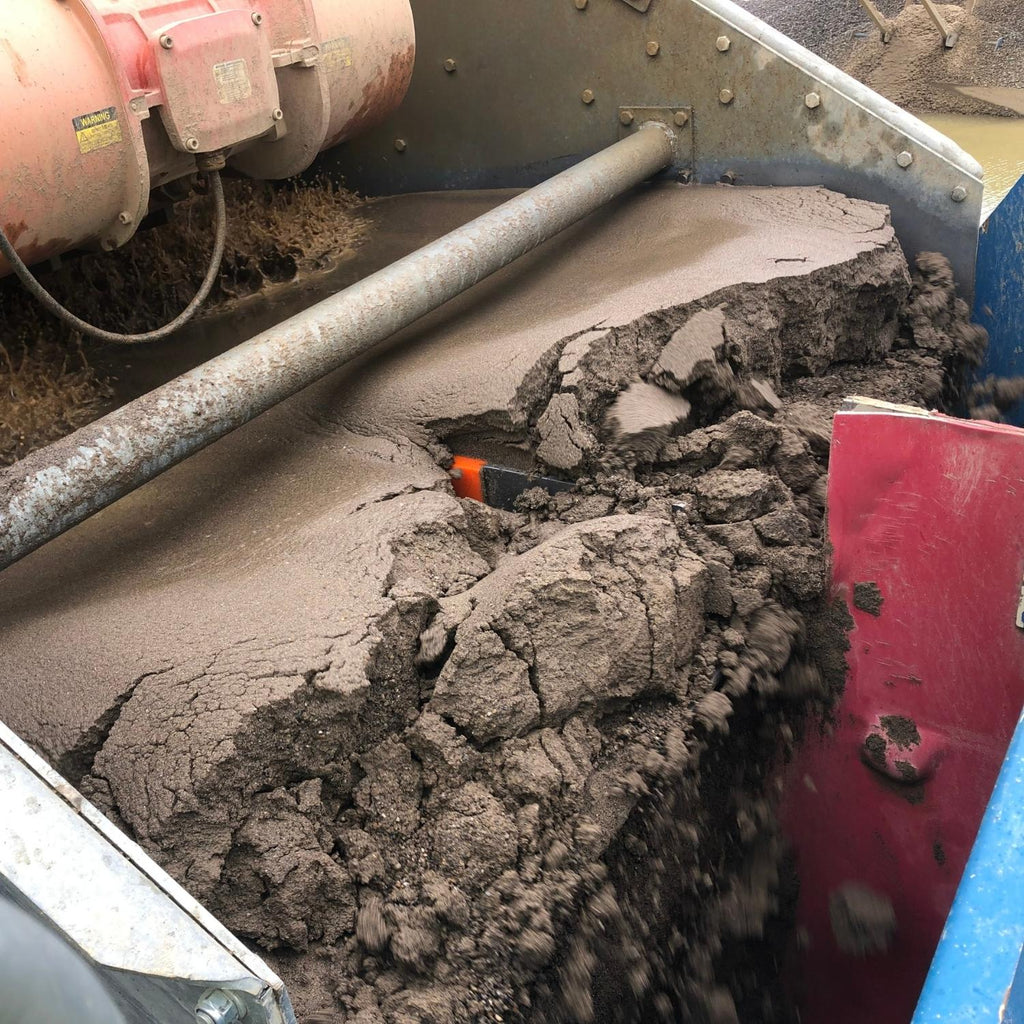

The customer replaced the screw with a SandMAX 250 single grade to produce spec C33 concrete sand.   The plant delivered a consistent 240tons / hour with less than 10% moisture in the final product thanks to the galvanized DuraMAX dewatering screen.  The plant boasts a small footprint, quick setup and high production with maximum efficiency.

For more information please contact us directly
