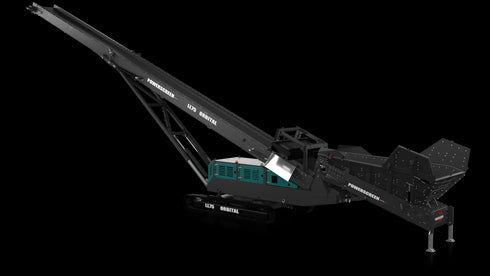

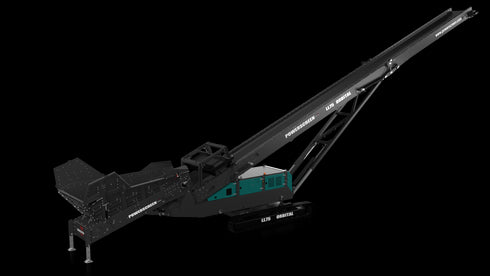

LL75 Orbital Low Feeder Conveyor

PRODUCT TYPE: Conveyor

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video
DESCRIPTION
The Powerscreen LL75 Low Level Feeder Conveyor allows the operator to directly discharge from wheel loaders and excavators at a significantly lower feed in height compared to other hopper feeders thus eliminating double handling of material on site. The LL75 also features a 75′ long stacker for excellent stockpiling. The orbital setup allows the conveyor to rotate separate from the undercarriage for increased efficiency and coordination on site.

    Features

    • Low feeder means easy to load directly from wheel loader or excavator
    • Self powered diesel hydraulic tracked feeder conveyor can be used alone or in conjunction with other Powerscreen mobile crushing and screening equipment
    • Containerised shipping means low cost transport

      Options

      • Canvas dust covers on discharge conveyor
      • Twin drive discharge conveyor
      • Twin drive feed conveyor
      • Full length side skirting along discharge conveyor
      • High spec discharge conveyor head drum scraper
      • Belt weigher
      • Overband magnet at feedboot of discharge conveyor
      • Radio remote to start / stop feeder, raise / lower discharge conveyor
      • Pull cord E-stop running length of discharge conveyor
      • Manual adjusting jacking legs at tail side of feeder to adjust tail height

        Specification Table

        LL75 Orbital

        Belt length

        73' 10"

        Belt Width

        48"

        Transport width

        10 6"

        Transport length (head folded)

        64' 8"

        Transport height (head folded, tow)

        11' 11"

        Discharge height

        34' 6"

        Output potential

        661tph

        * All information subject to machine configurations & specifications ordered.

        ** Powerscreen reserves the right to change specifications without prior notice.
