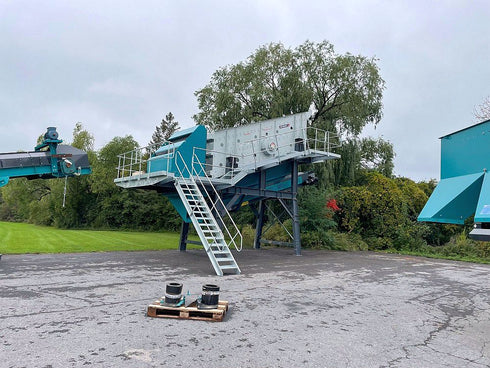

ScreenMAX 6203 Incline Dry Screen

CLICK HERE to download brochure
CLICK HERE to view video
DESCRIPTION

    ScreenMAX 6203 Modular Horizontal Screen features the extremely efficient Cedarapids® LJ-TSV screen with its legendary ElJay® oval stroke action. Now available in a Wet screen version, this highly efficient screenbox offers the user 3 washed aggregate products and 2 grades of spec sand.  Sand slurry can be gravity to the custom SandMAX dual grade sandplant for futher dewatering

    Specification

    • Eljay TSV6203-3 Triple shaft horizontal screenbox
    • Dual pivot surge dampers and Coil springs
    • 5/16” thick side plates with Huckbolted construction
    • Setup with 4’ screen mesh media panels (media not included)
    • Full rinser screenbox c/w isolated spraybars on all decks
    • O ring sealed vibrator mechanism with ‘flow through’ oil lubrication
    • Carriage bolts used to retain clamp bars
    • Heavy duty steel tube decks with herringbone bracing
    • AR lined discharge lips and feed box
    • Handaccess on all decks c/w bottom deck curtain
    • 40hp screen drive with v belt drive std, motor mount & guarding
    • Galvanised Steel structure support c/w walkways, access ladders & handrails*
    • Integrated Rolling chute mechanism c/w rotational trouser leg chutes
    • Heavy duty blending discharge chutes for blending operation between decks*
    • Heavy duty I beam frame with rigid diagonal truss construction
    • Modular setup - minimal site installation



    Weight


    48,500lbs

    Feed in height 21'

    Working Length

    48' 7"

    Working Width

    15' 9"

    Working Height

    18' 4"
