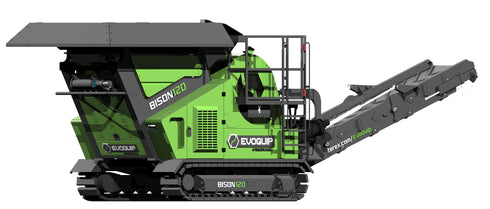

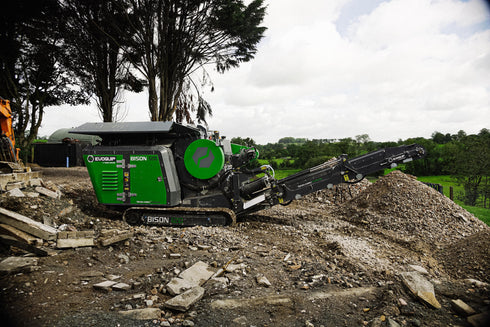

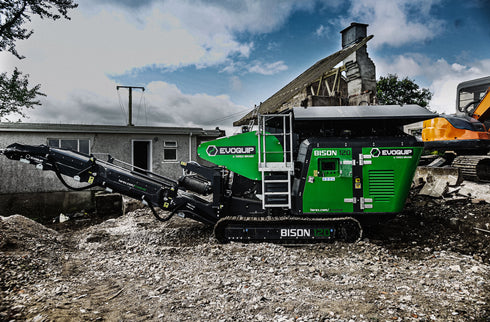

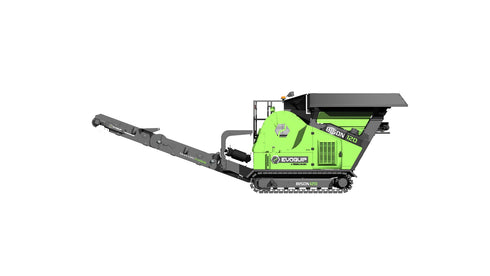

Bison 120 Jaw Crusher



CLICK HERE to download brochure
CLICK HERE to view video
The Bison 120 has been specifically designed for operators for whom versatility, maneuverability and transportability are of key importance. It is small enough to fit inside a container for transport but strong enough to withstand the toughest of applications. The Bison 120 features a 27"x16" single toggle Jaw Crusher that can be adjusted hydraulically using the remote control which comes as standard with the machine. The Jaw is driven hydraulically allowing the customer the ability to reverse the Crusher to clear a blockage as well as being able to run in reverse permanently for sticky applications such as asphalt. The ability to adjust the jaw setting and operate the plant fully from the remote control allows for a fast and simple set up for the customer.
    Features & Benefits
    • Quick set up time typically under 15 minutes
    • Chamber level sensor
    • CSS adjustable remotely
    • Reverse jaw function for sticky applications
    • Direct drive crusher
    • Fuel efficient 70hp engine
    • Track machine
    • Low transport costs
    Specification Table
    Weight 26,455lbs
    Transport length 18’4”
    Transport width 7’6”
    Transport height 9’
    Capacity> 90US tph
    Discharge height 15’10”



    * All information subject to machine configurations & specifications ordered.


    ** Terex Ecotec reserves the right to change specifications without prior notice.
