DESCRIPTION

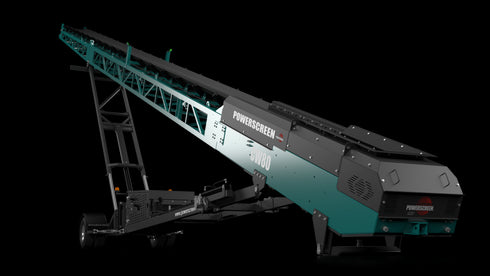

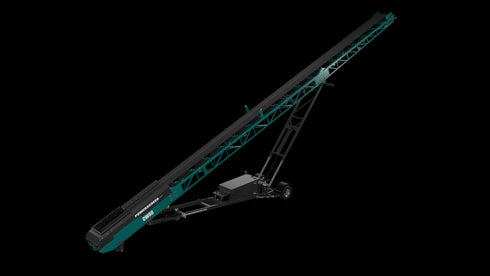

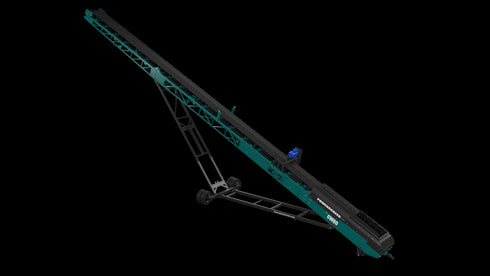

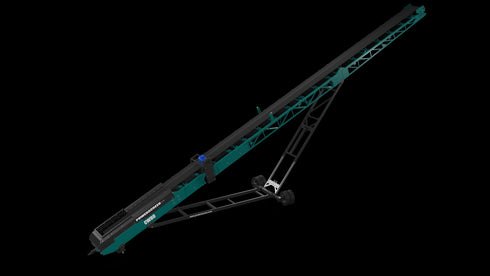

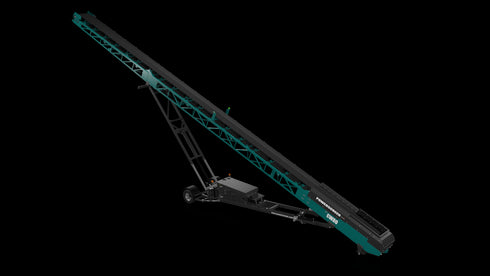

The Powerscreen CW80 radial conveyor is designed to be one of the most cost efficient and effective ways of stockpiling material on the market.
Available in either Pit or Road towable variants, the Powerscreen CW80 offers a variety of different options which means it can meet the requirements of almost all applications. This simple but efficient radial conveyor is available in both electric and hydraulic
drive systems and can be tailored to meet operator needs. Key applications include quarrying, aggregates and mining.
Features
- Extended skirting rubber on feedboot
- Steel lined feedboot
- Lattice design
- Folding head section
Options
- Feedboot Lined 6mm wearplate
- Feedboot extensions
- Chevron / Heavy Duty Belt
- Conveyor underguard length of mid-section
- Canvas dust covers
- Hydraulic angle adjust
- Hydraulic fold over for transport
- Hydraulic axle jacking legs (Std. with Road Chassis)
- Single radial wheel drive
- Pulse Telematics
Specification Table
|
CW80
|
|
Belt length
|
74' 10"
|
|
Belt Width
|
36"
|
|
Transport width (road / pit)
|
8' 3" / 10' 2"
|
|
Transport length (road / pit)
|
52' 11" / 54' 3"
|
|
Transport height (road / pit)
|
11' / 12' 11"
|
|
Discharge height
|
32' 7"
|
|
Max angle
|
23deg
|
* All information subject to machine configurations & specifications ordered.
** Powerscreen reserves the right to change specifications without prior notice.
