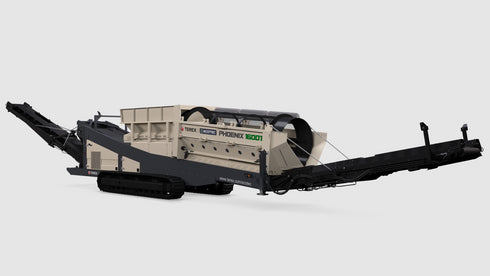

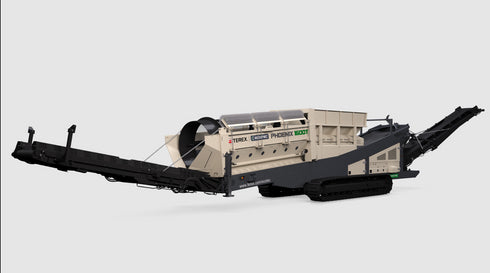

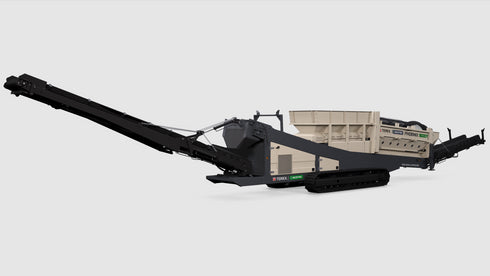

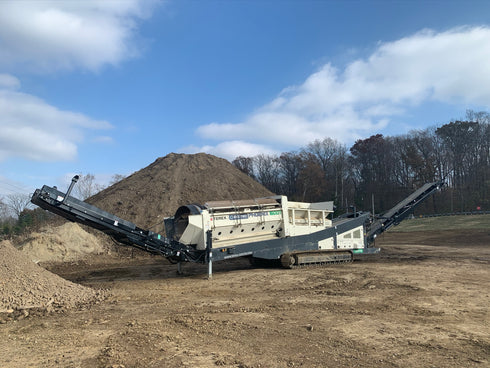

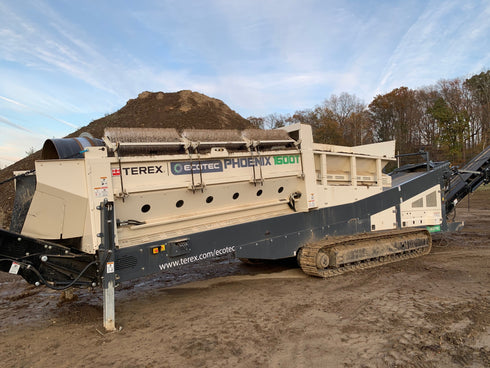

Ecotec's Phoenix 1600T Tracked Trommel Screen is ideal for operation in inhibited areas and offers increased site mobility.  Powered by a Caterpillar C4.4 engine it has been innovatively designed to provide excellent fuel efficiency and low operating costs, whilst also reducing emissions and noise levels due to the machine running at a low engine RPM.

Unrivalled production throughput is guaranteed due to the 4.9m (16') x 1.54m (5') drum providing a class leading screening area of 19m² (205ft²).  The Phoenix 1600T is highly versatile and can easily screen a variety of material including topsoil, compost, sand and gravel, wood chip and C&D waste.  Woven mesh or heavy duty punch plate panels can be fitted to the drum ensuring all application requirements are met.

The 180° swivel fines conveyor, with a discharge height of 5.65m (18' 6") results in the creation of impressive stockpiles.  This swivel feature can be controlled via a remote while the machine is in operation, minimising downtime.  The powerful four wheel drive system with high performance friction grip wheels is used to turn the trommel drum giving operators the ability to run bi-directionally.

Powerful hydraulics and intelligent feed control system ensure the Phoenix 1600T is always working at its optimum.  The low engine RPM coupled with the fuel save (stand-by) mode guarantees peak efficiency.  Easily transportable the Phoenix 1600T offers quick and easy set up along with excellent service access.

Features & Benefits
  • Remote Operated 180 Degree Radial Fines Conveyor
  • Low engine RPM & fuel save system
  • Excellent service access
  • Independent track sub-frame for adjustable screening angle
  • Tipping grid option
  • High capacity feed hopper
  • Intelligent feed control
  • Variable speed drum drive system
  • Adjustable self cleaning brushes
  • Mesh or punch plate panels
  • Variable speed oversize conveyor
Specification Table
CAT C4.4 110HP Tier 4 / CAT C4.4 82kW Tier 4 Final
CAT C4.4 130HP Constant Speed / CAT C4.4 97kW Constant Speed
Drum Diameter
5' / 1,540mm
Drum Length
16' / 4,900mm
Weight 46,500lbs / 21,100kg

* All information subject to machine configurations & specifications ordered.

** ECOTEC reserves the right to change specifications without prior notice.
