VENDOR: Terex Ecotec

CLICK HERE to download brochure
CLICK HERE to view video

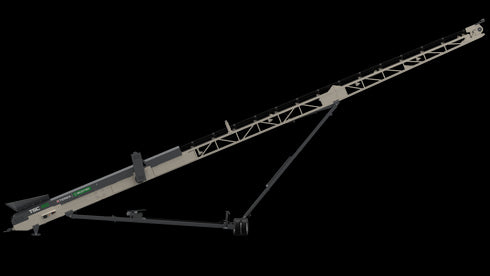

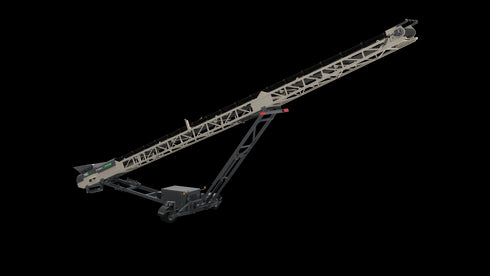

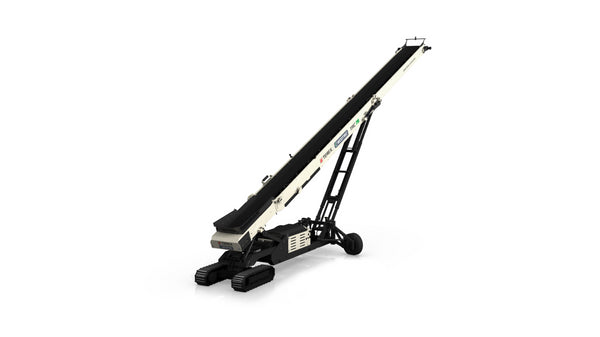

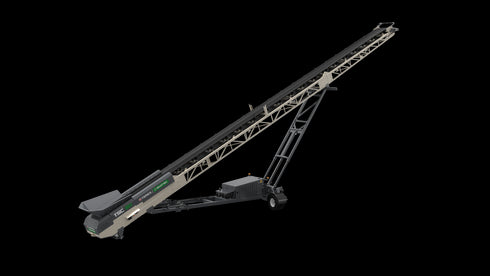

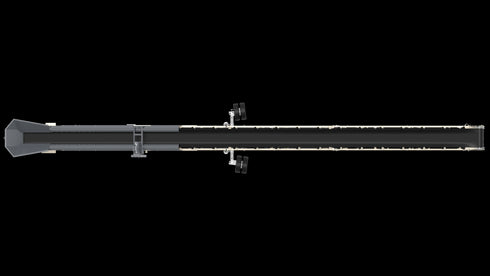

Terex Ecotec’s TSC 80 Wheeled Conveyor is designed to be one of the most cost efficient and effective ways of stockpiling material on the market. Available in either Pit or Road towable variants, the TSC 80 offers a variety of different options which means it can meet the requirements of almost all applications. This simple but efficient radial conveyor is available in both electric and hydraulic drive systems and can be tailored to meet operator needs.

Features & Benefits
  • Folding head section
  • Lattice design for reduced weight and increased strength.
  • The wheels used for site movement are then repositioned to perform the radial function.
  • Optional radial wheel drive
  • Pit Chassis and road chassis available.
  • CAT 1.7T Power rating: 18.4kW (24hp)

    Electric drive: 15kW

  • Extended skirting rubber from feedboot for smooth transition of material on the belt.
  • Steel lined feedboot as standard providing extended wear life.

    Optional feedboot extension available as shown.

Specification Table
Conveyor Length
74'10" / 22.85m
Belt Width
36' / 914mm
Max Discharge Height
32'7" / 9.95m

* All information subject to machine configurations & specifications ordered.

** ECOTEC reserves the right to change specifications without prior notice.
