Colt 800 Scalper Screen


VENDOR: Terex Evoquip

CLICK HERE to download brochure
CLICK HERE to view video

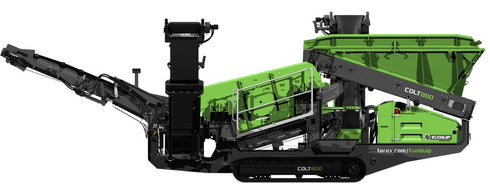

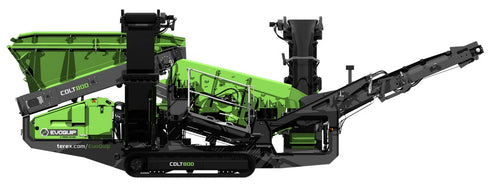

The Colt 800 Mobile Scalping Screen is a compact and aggressive forward facing incline screen. This versatile plant can work in aggregates, sand and gravel, top soil, construction demolition and recycling applications where site space is at a premium.
The highly aggressive screenbox can accept a range of media including bofor bars, finger screens, woven mesh and punch plates. Its compact size, quick set-up times, ease of transport and ease of operation makes the COLT 800 the ideal solution for all small to medium sized operators.
    Features & Benefits
    • Quick set up time typically under 15 minutes
    • Heavy duty single shaft screen
    • Adjustable stroke and speed
    • Variable speed hopper
    • Wide range of screen media available
    • Low fuel efficient 74hp engine
    • Hydraulic slide out of tail conveyor
    • Low transport costs
    Specification Table
    Weight 36,817lbs
    Transport length 30’3”
    Transport width 8’2”
    Transport height 10’1”
    Capacity 310US tph
    Max Feed size 16”
    Screenbox size 9’x 4’


    * All information subject to machine configurations & specifications ordered.

    ** Terex Evoquip reserves the right to change specifications without prior notice.
