Gladiator H6203 Wheel Screener

PRODUCT TYPE: Portable Screens

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video

DESCRIPTION

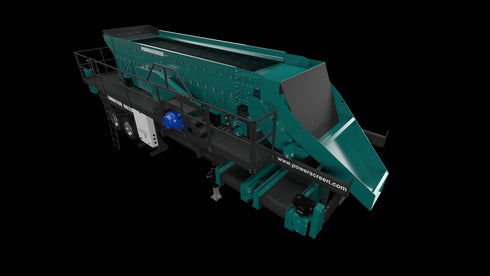

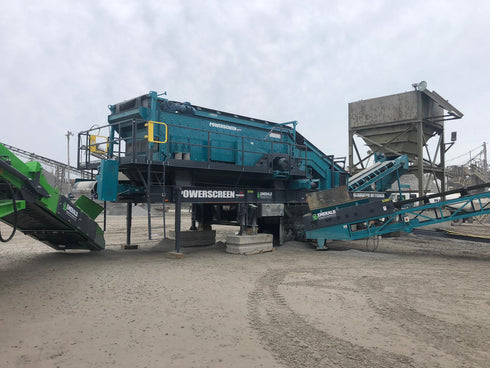

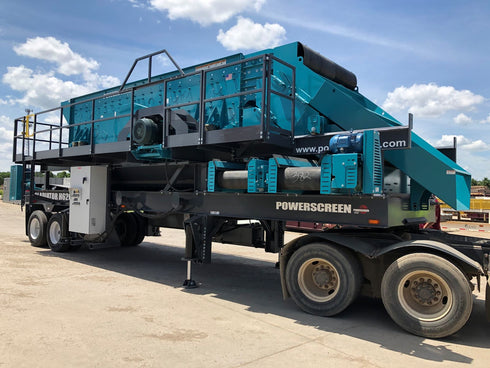

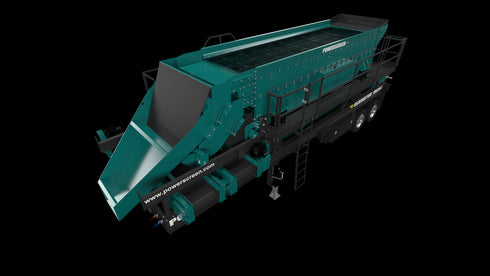

The Gladiator H6203 is a new electrically driven, wheeled horizontal screener plant offering excellent screening and blending capabilities. It features the renowned Terex® Cedarapids 20’ x 6’ heavy duty, triple-shaft oval stroke screenbox and is chassis mounted on wheels meaning ease of movement and set-up.

The Gladiator H6203 is a rugged and heavy-duty screening system, with many patented and patent-pending features. The unit is fully electrically driven using tried and tested Powerscreen® Hybrid™ technology, making it an ideal choice in locations with strict environmental regulations.
    Features & Benefits
    • High capacity up to 881 US tph / 800 tph
    • Maximum feed size 10’’
    • 20' 6' 4" 3 deck triple shaft horizontal screenbox
    • Adjustable speed, angle and stroke
    • Heavy duty triple shaft horizontal screenbox with adjustable stroke, angle & speed
    • Multiple blending chute options to ensure versatility
    • E-Stops on both sides of the unit
    • Optional Honda powerunit for hydraulic options such as hydraulic chutes or hydraulic jacking legs
    Options
    • Manual button switchgear panel - NEMA 4 enclosure, NEMA components, breaker, reversing starters for cross conveyors, three position start/
      stop push buttons, mains disconnect, emergency stop, 4 x extra starters. Includes panel stand but no lead cord
    • High spec panel including above in addition to quick release plugs and external interlocking
    • 100ft lead cord - to connect panel to power source
    • Add hydraulics to roll away chutes - 13hp Honda powerunit
    • 4 no of 6’’ x 16’’ levelling hydraulic jacks & 13hp Honda powerunit
    • 4 no of 6’’ x 24’’ run on hydraulic jacks & 13hp Honda powerunit
    • 2 no of additional crank jacks
    • Safety tie off cable to keep power clear of the screen

    Specification Table
                            H6203
    Weight  54,250lbs
    Transport width 12'
    Transport length 42' 2"
    Transport height 13' 6"
    Working width 12'
    Working length 42' 2"
    Working height 13' 6"



    ** All information subject to machine configurations & specifications ordered.

    ** Powerscreen reserves the right to change specifications without prior notice.
