Gladiator H8203 Wheel Screener

PRODUCT TYPE: Portable Screens

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video

DESCRIPTION

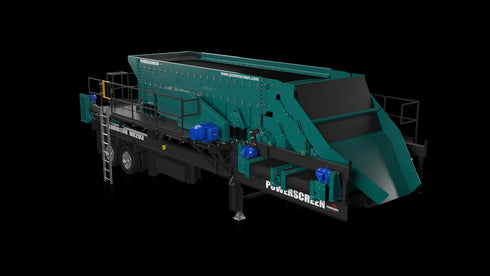

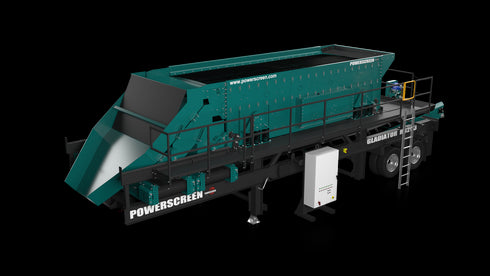

The Gladiator H8203 is a new, electrically driven, wheeled horizontal screening plant which offers excellent screening and blending capabilities.
It features the tried and tested Terex Cedarapids 20’ x 8’ heavy duty, triple shaft oval stroke screenbox  which is chassis mounted on wheels - meaning ease of movement and quick set up.

The Gladiator H8203 is a rugged and heavy duty screening system, with many patented and patent pending features. The unit is fully electrically driven, which makes it the ideal solution in areas where there are strict environmental regulations.
    Features & Benefits
    • High capacity up to 1102 US tph / 1000 tph
    • Maximum feed size 10’’
    • 20' 8' 3 deck triple shaft horizontal screenbox
    • Adjustable speed, angle and stroke
    • Heavy duty triple shaft horizontal screenbox with adjustable stroke, angle & speed
    • Multiple blending chute options to ensure versatility
    • E-Stops on both sides of the unit
    • Optional Honda powerunit for hydraulic options such as hydraulic chutes or hydraulic jacking legs
    Options
    • Manual button switchgear panel - NEMA 4 enclosure, NEMA components, breakers, reversing starters for cross conveyors, three position start/ stop push buttons, mains disconnect, emergency stop, 4 x extra starters. Includes panel stand but no lead cord. Manually remove from plant.
    • Deluxe switchgear panel - includes all of the above in addition to quick release plugs and external interlocking
    • 100ft lead cord - to connect panel to power source
    • Add hydraulics to roll away chutes - 13hp Honda powerunit
    • 4 no of 6’’ x 16’’ levelling hydraulic jacks & 13hp Honda powerunit
    • 4 no of 6’’ x 24’’ run on hydraulic jacks & 13hp Honda powerunit
    • 2 no of additional crank jacks
    • Safety tie off cable to keep power clear of the screen

    Specification Table
                            H8203
    Weight  65,500lbs
    Transport width 12'
    Transport length 46' 6"
    Transport height 13' 6"
    Working width 12'
    Working length 46' 6"
    Working height 15’ 8’’



    ** All information subject to machine configurations & specifications ordered.

    ** Powerscreen reserves the right to change specifications without prior notice.
