Gladiator MT1150 Wheel Cone

PRODUCT TYPE: Portable Crusher

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video

DESCRIPTION

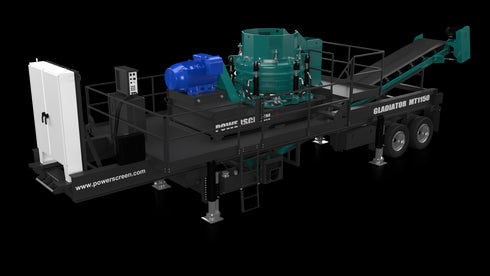

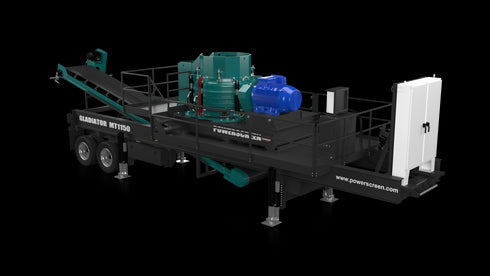

The Gladiator MT1150 is a new electrically driven, wheeled open circuit cone crusher. It features the renowned Terex® TC1150 cone chamber and is chassis mounted on wheels meaning ease of movement and set-up.

The Gladiator MT1150 is fully electrically driven using tried and tested Powerscreen® Hybrid™ technology, making it an ideal choice in locations with strict environmental regulations
    Features & Benefits
    • Output potential of up to 330 US tph / 300 tph
    • ACE 6 crusher control
    • TC 1150 crusher fitted as standard with short throw eccentric
    • Service platforms around the crusher with an elevated observation platform
    • Electrically driven
    • Accepts clean ‘all in feed
    • Excellent product shape
    • High reduction ratio
    • Metal detector (optional)
    • E-Stops on both sides of the unit.
    Options
    • Manual button switchgear panel - 300hp soft starter and 15hp conveyor starter, 2 extra starters for off plant conveyors. No lead cord included.
    • Deluxe switchgear panel - as above to include quick release plug and external interlocking
    • 100ft lead cord - to connect panel to power source.
    • 4 no of 6’’ x 16’’ hydraulic levelling jacks with 13hp Honda powerunit.
    • 4 no of 6’’ x 24’’ hydraulic run on jacks with 13hp Honda power unit.
    • 2 no of additional crank jacks.
    • Long throw chamber

    Specification Table
                           MT1150
    Weight (Total Est) 66,974lbs
    Transport width 11'11"
    Transport length 47' 5"
    Transport height 13' 2"
    Working width 11'11"
    Working length 47' 5"
    Working height 13' 2"



    ** All information subject to machine configurations & specifications ordered.

    ** Powerscreen reserves the right to change specifications without prior notice.
