DESCRIPTION

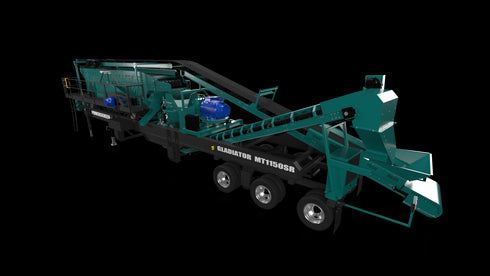

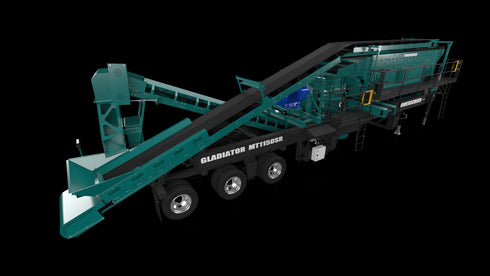

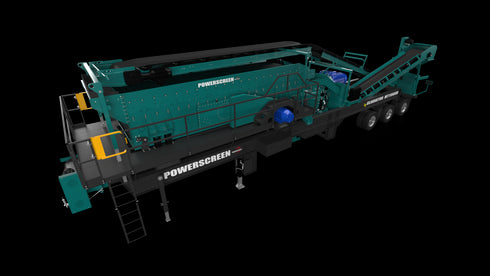

The Gladiator MT1150SR is a wheeled, electric drive closed-circuit cone crushing/screening plant.
This closed circuit crushing and screening plant incorporates the renowned Terex® TC1150 cone crushing chamber coupled with the mighty 20' 6' H6203 heavy duty, triple shaft oval stroke screenbox and is chassis mounted on wheels meaning ease of movement and set-up.
The unit is fully electrically driven using tried and tested Powerscreen® Hybrid™ technology, making it an ideal choice in locations with strict environmental regulations.
Features & Benefits
- Output potential of up to 450 tph / 496 US tph
- 45" 1150 Automax® crusher fitted as standard with short throw eccentric
- 20’ x 6’ 4” 3 deck triple shaft horizontal screenbox
- Variable Speed, angle and throw on screenbox
- Accepts clean ‘all in feed’.
- Excellent product shape.
- High reduction ratio.
- Metal detector as standard
- Access ladders on both sides to access the upper deck.
- E-Stops on both sides of the unit.
Options
- Manual button switchgear panel - 300hp soft starter, 40hp screen starter and conveyor starters, 2 extra starters for off plant conveyors. No lead cord
included.
- Deluxe switchgear panel - as above to include quick release plug and external interlocking
- 100ft lead cord
- 4 no of 6’’ x 16’’ levelling hydraulic jacks with 13hp Honda power unit
- 6 no of 6’’ x 24’’ run on hydraulic jacks with 13hp Honda power unit
- Long throw chamber
Specification Table
MT1150 SR
Weight (Total Est) |
113,000lbs
|
Transport width |
11' 11" |
Transport length |
64' 6"
|
Transport height |
14'
|
Working width |
12' 10" |
Working length |
64' 6' |
Working height |
15' |
** All information subject to machine configurations & specifications ordered.
** Powerscreen reserves the right to change specifications without prior notice.
