Gladiator PT450 Wheel Jaw

PRODUCT TYPE: Portable Crusher

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video

DESCRIPTION

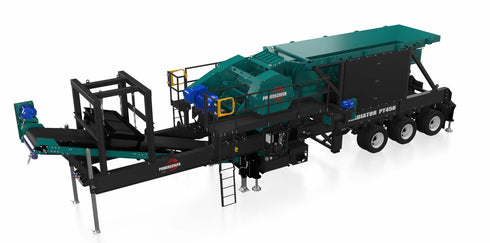

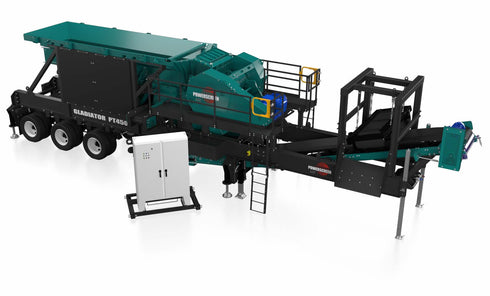

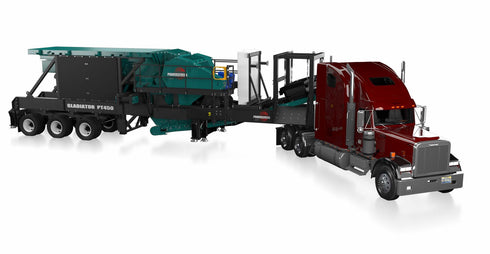

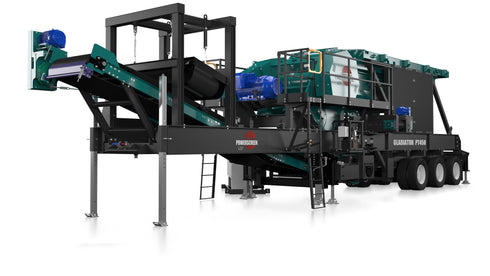

The Gladiator PT450 is a new electrically driven, portable jaw crusher. It features the tried-and-tested Terex CR040 jaw crushing chamber and is chassis mounted on wheels meaning ease of movement and set-up.

The Gladiator PT450 is fully electrically driven using tried and tested Powerscreen® Hybrid™ technology, making it an ideal choice in locations with strict environmental regulations

    Features & Benefits
    • Simple, reliable push button controls
    • Vibrating grizzly feeder removes fines before crushing
    • Aggressive crushing action by renowned Terex CR040 jaw chamber
    • Feed Opening: 44” x 28”
    • Hydraulic adjustments at ground level
    • Self aligning sphering roller bearings
    • Triple axle chassis with 12 wheels, spring suspension and air brakes as standard
    • Electrically driven by either external genset or 3 phase mains connection
    Options
    • 20" Hopper extensions
    • Manual button switchgear panel - 150hp soft starter, 40hp VFD, 15hp conveyor
      starter, 2 extra starters for off plant conveyors. No lead cord included (see
      below).
    • Deluxe switchgear panel - as above to include quick release plug and external
      interlocking
    • 100ft lead cord - to connect panel to power source
    • 4 no of 6’’ x 16’’ levelling hydraulic jacks with 13hp powerunit
    • 6 no of 6’’ x 24’’ run on hydraulic jacks 13hp powerunit
    • Eriez TP25/80 or TP20/80 Twin pole magnet
    • Wireless remote. VGF Start / stop, speed control - 200ft range
    • 20’’ hopper extensions
    • 24’’ bypass conveyor with flop gate bypass chute

    Specification Table
                           PT450
    Weight (Total Est) 96,200lbs
    Transport width 9'2"
    Transport length 52' 9"
    Transport height 13' 5"
    Working width 11'2"
    Working length 52' 9"
    Working height 13' 6"



    ** All information subject to machine configurations & specifications ordered.

    ** Powerscreen reserves the right to change specifications without prior notice.
