DESCRIPTION

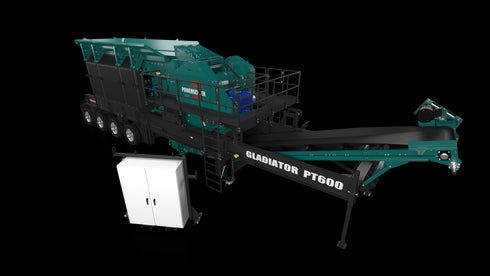

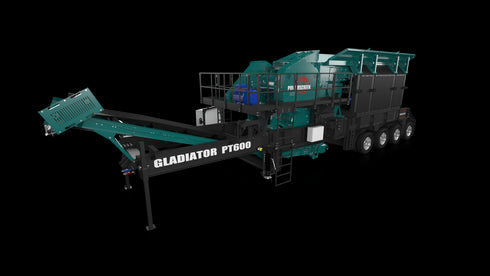

The new Gladiator PT600 is the largest jaw crushing plant in the Powerscreen® wheeled plant range. The electrically driven power system provides significant cost savings and superior performance in dusty applications and in high altitude environments.
The Gladiator PT600 is fully electrically driven using tried and tested Powerscreen® Hybrid™ technology, making it an ideal choice in locations with strict environmental regulations
Features & Benefits
- Output potential of up to 661 US tph / 600 tph - depending on material type and crusher settings.
- 47’’ x 32’ Single toggle jaw with hydraulic setting adjustment
- The electrically driven power system provides significant cost savings.
- Superior performance in dusty applications and in high altitude environments.
- The high powered electric drive ensures precise chamber control and reverse functionality for clearing blockages - also proving advantageous in recycling and demolition applications.
- Access platforms around 3 sides of the chamber.
- E-Stops on both sides of the unit.
- The optional twin pole magnet has a reversible discharge chute
Options
- Manual button switchgear panel
- 100ft lead cord - to connect panel to power source
- 4 no of 6’’ x 16’’ levelling hydraulic jacks with 13hp Honda powerunit
- 6 no of 6’’ x 24’’ run on hydraulic jacks 13hp Honda power unit
- TP20/100 SC2ATwin pole magnet
- Various grizzly bar spacings
- 30’’ bypass conveyor complete with bypass chute
- Removable side and under guarding
- Multiple axle configurations to meet a variety of road regulations
Specification Table
PT600
| Weight (Total Est) |
129,576lbs
|
| Transport width |
9'2" |
| Transport length |
52' 5"
|
| Transport height |
13' 6"
|
| Working width |
11'10" |
| Working length |
52' 6" |
| Working height |
16' 1" |
** All information subject to machine configurations & specifications ordered.
** Powerscreen reserves the right to change specifications without prior notice.
