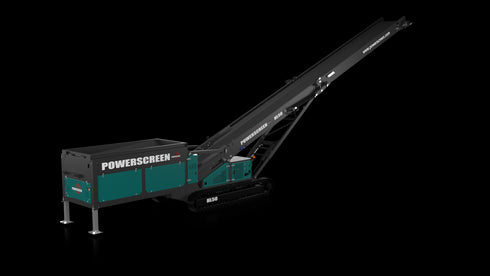

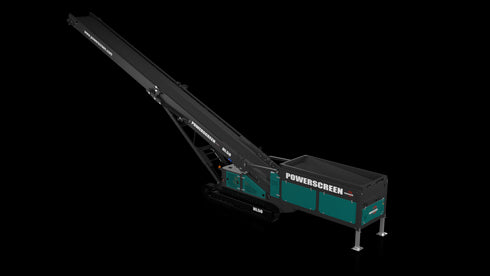

HL50 Hopper Feeder Conveyor

PRODUCT TYPE: Conveyor

VENDOR: Powerscreen

CLICK HERE to download brochure
DESCRIPTION
The Powerscreen HL50 high level feeder combines the highly versatile Chieftain feeder system with stockpiling conveyor, allowing the operator to directly discharge from wheel loaders to reduce the amount of material handling on site. The fully mobile units can be used for 'metered or controlled' feed of material into any Powerscreen products or other machines.

    Features

    • Proven Chieftain® feeder system means loading directly from wheel loader
    • Self powered diesel hydraulic tracked feeder conveyor can be used alone or in conjunction with other Powerscreen mobile crushing and screening equipment
    • Hydraulic folding head section
    • Variable speed feeder

      Options

      • Canvas dust covers on discharge conveyor
      • Twin drive discharge conveyor
      • Full length side skirting along discharge conveyor
      • High spec discharge conveyor head drum scraper
      • Belt weigher
      • Overband magnet at feedboot of discharge conveyor
      • Radio remote to start / stop feeder, raise / lower discharge
      • Pull Cord E-stop running length of discharge conveyor
      • 4”, 5" or 6” tipping grid fitted to feed conveyor
      • Single Deck Vibrating Grid

        Specification Table

        HL50

        Belt length

        51' 2"

         5"Belt Width

        42"

        Transport width

        7' 6"

        Transport length

        39' 11"

        Discharge height

        23' 7"

        Max angle

        24deg

        * All information subject to machine configurations & specifications ordered.

        ** Powerscreen reserves the right to change specifications without prior notice.
