IMS RD100 Box Screener

PRODUCT TYPE: Screener

VENDOR: IMS

CLICK HERE to download brochure
CLICK HERE to view video

DESCRIPTION

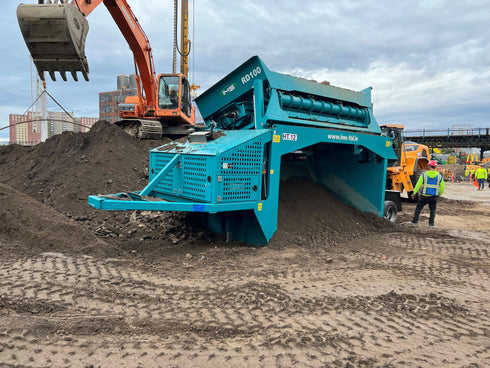

RD100 Mobile Screen provides contractors with a simple to use, compact, and highly reliable screening plant that can handle a wide variety of materials.

Contractors save money by screening material on the job site, thus reducing handling and tipping costs.

    Features & Benefits

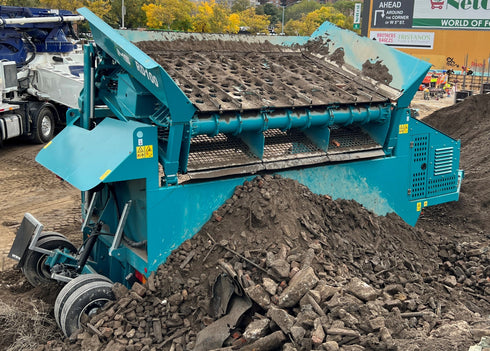

    • 11’ wide x 7’ double deck shaker grid, 13’ 2” width
    • Shaker head runs forward and in reverse rotation
    • Shaker head tilts up for cleaning and optimal screening
    • Works with 4 to 7 yard buckets, ¼” to 4” wire or punch plate
    • Hydraulically adjustable angle on grid with minimum loading height of 11’ 3”
    • Caterpillar C1.7 Stage V/T4F Diesel engine with 50HP no DEF required
    • 9” X 17.5” rims with tires, brakes and LED light

    Specification Table
                             RD100
    Weight (axle / kingpin)  15,000lbs / 11,500lbs
    Transport width 8' 6"
    Transport length 27' 7"
    Transport height 10' 11"
    Working width 8' 6"
    Working length 27' 7"
    Working height 11’ 11’’



    ** All information subject to machine configurations & specifications ordered.

    ** Powerscreen reserves the right to change specifications without prior notice.
