Metrotrak / HA Jaw


VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video

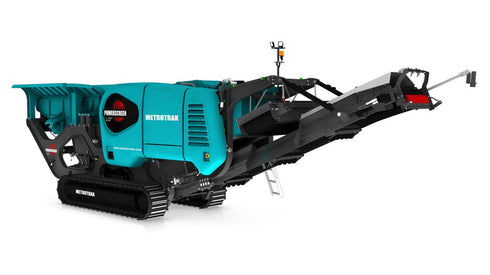

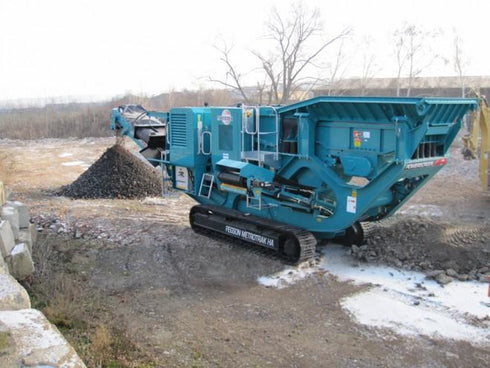

The Powerscreen® Metrotrak is a highly compact, high performing track mobile jaw crushing plant featuring the “M” series single toggle jaw crusher. With an aggressive crushing action and a high output even at tight settings, the Metrotrak is ideally suited for operators on the mining, quarrying and recycling industries, especially those working in urban locations or where space is restricted.

The new Metrotrak builds on the previously successful model with upgraded features, additional options and slick new styling. With a hydraulically adjusted, fuel efficient direct drive chamber as standard, users benefit from an ability to quickly and easily change the size of finished product with minimal running costs..

Additional machine serviceability options are also available. These include a product conveyor which fully lowers to ground level and should a chamber blockage occur, operators can safely and quickly use the chamber unblock option whilst retaining the high levels of fuel efficiency of a direct drive chamber.

    Features & Benefits
    • Output Potential: up to 200 tph (220 US tph)
    • Heavy duty fabricated chassis and track frame
    • Stepped self-cleaning grizzly feeder
    • Heavy duty wear resistant hopper
    • Fully skirted product conveyor up to magnet
    • Grizzly by-pass and fines chute
    • Fixed hopper as standard with bolt-in wear liners
    • Dust suppression system
    • Powerscreen pulse intelligence telemetry system as standard
    • Economical to operate with a highly efficient direct drive system
    • Bypass conveyor
    • Hydraulic fully lower / raise product conveyor
    • Chamber unblock system
    • Aluminum dust covers
    • Hydraulic deflector plate
    • Hydraulic folding product conveyor for transport
    • Constant speed engine
    • Single pole/ twin pole magnet
    • Hydraulic deflector plate
    • Jaw level sensor
    • Single pole/ twin pole magnet
    • Radio remote control
    • Belt weigher
    • Hydraulic water pump
    • Engine fire extinguisher system
    • Electric refueling pump
    • Underscreen wire mesh
    Specification Table
    Metrotrak Metrotrak HA
    Weight (Est) 28,200kgs (59,965lbs) 29,250kgs (64,485lbs)
    Transport width 2.4m (7'10") 2.4m (7'10")
    Transport length 12.4m (40'8”) 13.1m (43')
    Transport height 3.2m (10'6") 3.3m (10'10")
    Working width 3.8m (12'6") 3.87m (12'6")
    Working length 12.4m (40'8”) 13.1m (42'9”)
    Working height 3.2m (10'6") 3.4m (11'2")


    * All information subject to machine configurations & specifications ordered.

    ** Powerscreen reserves the right to change specifications without prior notice.
