Trakpacktor 320/SR Pre Screen

Name: Trakpacktor 320/SR Pre Screen
Brand: Powerscreen
Availability: InStock

PRODUCT TYPE: Impact Crusher

VENDOR: Powerscreen

Add To Compare Added To Compare

CLICK HERE to download brochure

CLICK HERE to view video

DESCRIPTION

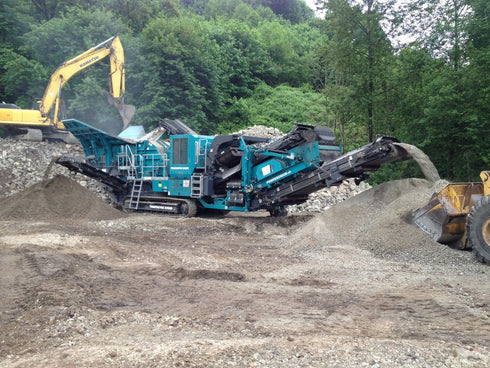

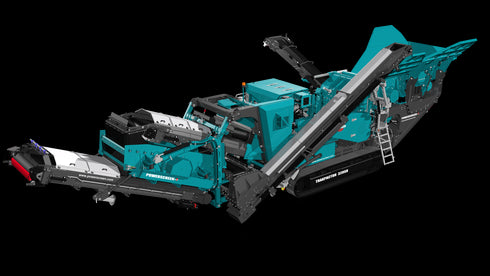

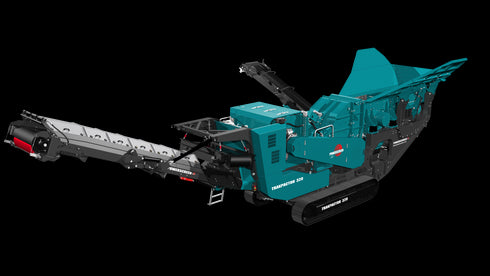

The Powerscreen Trakpactor 320SR is a mid-sized impactor redesigned with key enhancements to offer operators and contractors excellent reduction and high consistency of product shape. Powerscreen® Trakpactor 320SR features a screen and recirculating (SR) conveyor which returns oversized product to the crusher for further reduction. The plant features a quick-detach post-screen section which converts it to a standard Trakpactor 320 unit. Another key feature is the recirculating conveyor which raises for transport allowing more ground clearance under the machine when moving on site and while loading for transport.

With track mobility, the impactor is capable of working in the most demanding environments and features a rapid set-up time, fuel efficient direct drive system, and excellent throughput capacity. The Trakpactor 320 comes standard with Powerscreen Pulse telematics system for machine performance monitoring.

Features & Benefits

Output Potential: up to 320 tph (352 US tph)
Suitable for a variety of feed materials including recycling, demolition and quarry applications
Bolt in cartridge grizzly - 42mm nominal spacing
Load management system to control feeder speed
4 bar rotor and twin apron design
Crusher speed variation through user friendly PLC control system
Modular conveyor with raise/lower facility to aid clearance of rebar
Economical to operate with a highly fuel efficient direct drive system
Double deck grizzly feeder with under screen

Options

Full & half size chrome, martensitic, austenitic & ceramic blow bars
Grizzly cartridges
Independent hydraulic pre-screen
Underpan feeder
Pre-screen cassettes - punch plate and grizzly
Punch plate options 30, 45 or 60mm
Blanking plates/mats for grizzly
Feeder underscreen wiremesh 10, 20, 30, 40, or 50mm
Single pole/twin pole magnet
Belt scale
Refuelling pump
Hydraulic water pump
Radio remote control
Dust hood on product conveyor
Plant lighting
Hopper extensions
Bypass conveyor and extended bypass conveyor
Extended product conveyor

Specification Table

	320 Pre Screen	320SR Pre Screen
Weight	84,128	112,436lbs
Transport width	8' 5"	10' 2"
Transport length	48' 6"	57' 8"
Transport height	11' 4"	11' 4"
Working width	18' 2"	19' 7"
Working length	47' 1"	56' 6"
Working height	12' 8"	15' 5"
