Warrior 1200

PRODUCT TYPE: Scalper Screener

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video

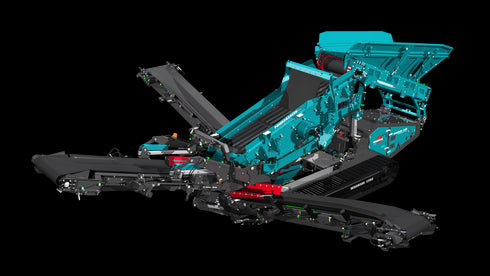

The Powerscreen Warrior 1200 is the most compact 12ft scalping screen in today’s market. Despite this footprint, with a highly aggressive screen at its heart, the Warrior 1200 is not overshadowed by its competition. Building on the success of the Warrior 600, the Warrior 1200 boasts excellent service access, high capacity and a low cost of ownership. A multipurpose heavy duty incline two deck screen, the Warrior 1200 is capable of stockpiling, scalping before and after crushing units, or as a standalone unit. Its highly aggressive screen can accept bofor bars, finger screens, woven mesh and punch plates along with other application specific media types.

User benefits include a rapid set-up time and ease of operation aided by hydraulically folding conveyors, two speed tracks and a swift two way split conversion.

    Features & Benefits
    • Output potential up to 300 tph (330 US tph)
    • Rapid conversion from 3 way split to 2 way split - fully hydraulic
    • High aggression screenbox with ability to adjust stroke
    • Robust, heavy duty, fixed angle 2 bearing, 2 deck screen
    • Variable speed hopper featuring heavy duty rollers & rigid hopper
    • Open chassis design with unrivalled access below screen to aid mesh changes
    • Hydraulic folding conveyors with excellent stockpiling capacity
    • Radio controlled tracking
    • Screen blanket
    • Auto lubrication system
    • Dust suppression
    • Plain/chevron belt conveyors
    • Hydraulic folding tail conveyor
    • Hydraulic folding hopper extensions
    • Wide range of screen meda
    • Quick release screen wedge tensioning
    Specification Table
    Total weight 16,80kgs (37,038lbs)
    Transport width 2.25m (7'5")
    Transport length 10.96m (36')
    Transport height 2.51m (8'3")
    Working length 11.62m (38'2")
    Working width 10.36m (34')
    Working height 4.02m (13'2")
    Screen unit 3.6m x 1.17m (12'x4')

    * All information subject to machine configurations & specifications ordered.

    ** Powerscreen reserves the right to change specifications without prior notice.
