Trakpacktor 320/SR

PRODUCT TYPE: Impact Crusher

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video

DESCRIPTION

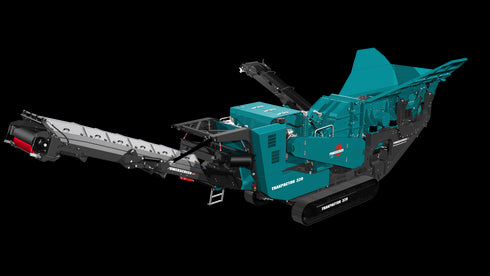

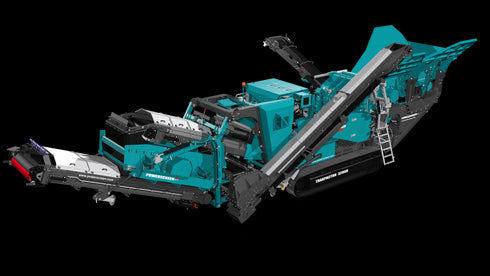

The Powerscreen Trakpactor 320SR is a mid-sized impactor redesigned with key enhancements to offer operators and contractors excellent reduction and high consistency of product shape. Powerscreen® Trakpactor 320SR features a screen and recirculating (SR) conveyor which returns oversized product to the crusher for further reduction. The plant features a quick-detach post-screen section which converts it to a standard Trakpactor 320 unit. Another key feature is the recirculating conveyor which raises for transport allowing more ground clearance under the machine when moving on site and while loading for transport.

With track mobility, the impactor is capable of working in the most demanding environments and features a rapid set-up time, fuel efficient direct drive system, and excellent throughput capacity. The Trakpactor 320 comes standard with Powerscreen Pulse telematics system for machine performance monitoring.

Features & Benefits
  • Output Potential: up to 320 tph (352 US tph)
  • Suitable for a variety of feed materials including recycling, demolition and quarry applications
  • Bolt in cartridge grizzly - 42mm nominal spacing
  • Load management system to control feeder speed
  • 4 bar rotor and twin apron design
  • Crusher speed variation through user friendly PLC control system
  • Modular conveyor with raise/lower facility to aid clearance of rebar
  • Economical to operate with a highly fuel efficient direct drive system
  • Double deck grizzly feeder with under screen
Options
  • Full & half size chrome, martensitic, austenitic & ceramic blow bars
  • Grizzly cartridges
  • Independent hydraulic pre-screen
  • Underpan feeder
  • Pre-screen cassettes - punch plate and grizzly
  • Punch plate options 30, 45 or 60mm
  • Blanking plates/mats for grizzly
  • Feeder underscreen wiremesh 10, 20, 30, 40, or 50mm
  • Single pole/twin pole magnet
  • Belt scale
  • Refuelling pump
  • Hydraulic water pump
  • Radio remote control
  • Dust hood on product conveyor
  • Plant lighting
  • Hopper extensions
  • Bypass conveyor and extended bypass conveyor
  • Extended product conveyor
Specification Table
  Trakpactor 320 Trakpactor 320SR
Weight 80,601
102,647lbs
Transport width 8' 5" 10' 2"
Transport length 48' 6" 57' 8"
Transport height 11' 4" 11' 4"
Working width 18' 2" 19' 7"
Working length 47' 1" 56' 6"
Working height 12' 8" 15' 5"



* All information subject to machine configurations & specifications ordered.

** Powerscreen reserves the right to change specifications without prior notice.
