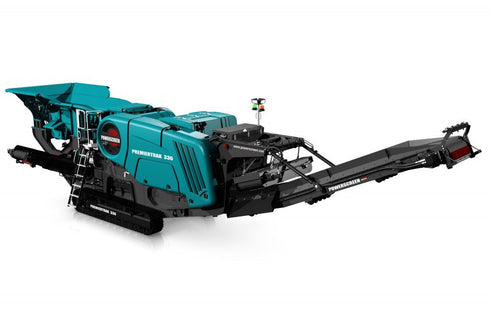

Premiertrak 330

PRODUCT TYPE: Jaw Crusher

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video

DESCRIPTION

The Powerscreen® Premiertrak range of high-performance primary jaw crushing plants are designed for operators in quarrying, demolition, recycling, and mining applications. The range includes the Premiertrak 330 which boasts a two-piece grizzly feeder allowing better material flow towards the chamber. User benefits include track mobility for a quick set-up time, and variable crusher speed that allows the operator to fine tune the machine and maximize output.

A hydrostatic drive system offers versatility and allows the crusher to be operated in reverse, of particular benefit in recycling applications.

    Features & Benefits
    • Output potential up to 280tph (308 US tph) (Depending on application & CSS)
    • Hydrostatic Drive with reverse crush capacity
    • Heavy duty wear resistant feed hopper
    • Stepped self-cleaning grizzly feeder with under feeder screen
    • Wide bypass chute to optimise material flow
    • Aggressive crushing action with high swing jaw encouraging material entry into crushing chamber
    • Fully hydraulic crusher setting adjustment
    • Improved manganese liner retention, protects jaw supports on both swing & fixed jaws
    • Excellent under crusher access for removal of wire with hydraulic raise/lower product conveyor (Optional)
    • Low fuel consumption due to efficient drive system and low engine RPM
    • Easily accessed power unit canopy
    • PLC control system with auto start facility
    • Remote control via umbilical
    • Dust suppression system

    Options
    • Hydraulic deflector plate
    • Bypass conveyor
    • Single pole/twin pole magnet
    • Radio remote control
    • Belt weigher
    • Extended hopper
    • Hydraulic water pump
    • Deflector plate adjustment
    Specification Table
    Premiertrak 330
    Weight (Est) 76,853lbs side conv & magnet
    Transport width 8' 6"
    Transport length 51'
    Transport height 11' 1"
    Working width 15' 1"
    Working length 15'
    Working height 13'



    * All information subject to machine configurations & specifications ordered.

    ** Powerscreen reserves the right to change specifications without prior notice.
