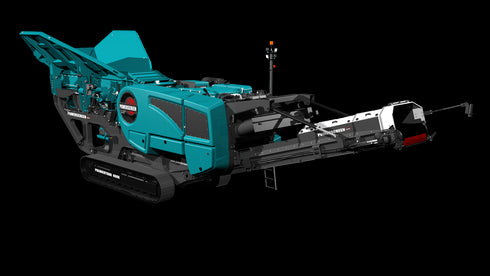

Premiertrak 400X / R400X

PRODUCT TYPE: Jaw Crusher

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video

DESCRIPTION

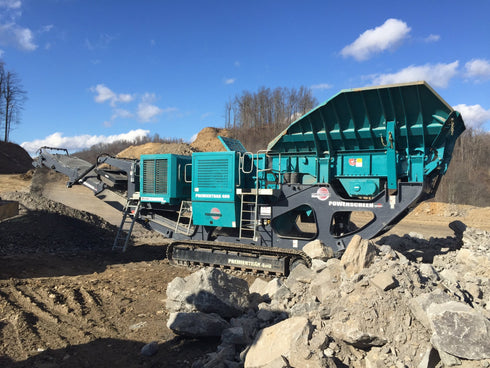

The Powerscreen® Premiertrak 400X range of portable jaw crushers are designed for medium scale operators in quarrying, demolition, recycling and mining applications. The range includes the Premiertrak 400X with hydraulic adjust and the Premiertrak R400X with hydraulic release. User benefits include track mobility for a quick set-up time (typically under 30 minutes,) hydraulic crusher setting adjustment for total control of product size and crusher overload protection to prevent damage by uncrushable objects.

    Features & Benefits
    • Output Potential: up to 400tph (441 US tph)*
    • High output and excellent reduction capability
    • Wear resistant hyraulic folding feed hopper with hydraulic wedge fixing system
    • Excellent under crusher access for removal of wire with hydraulic raise lower product conveyor
    • Stepped self-cleaning grizzly feeder with under feeder screen option
    • Deep fines chute to reduce material blockages
    • Improved bypass chute to increase material flow
    • Aggressive crushing action with high swing jaw encouraging material entry into crushing chamber
    • Hydraulic crusher setting adjustment
    • Improved manganese liner retention, protects jaw supports on both swing & fixed jaws
    • Economical to operate with low fuel consumption due to highly efficient direct drive system
    • Angle adjustable product conveyor
    • Easy access power unit canopy
    • PLC control system with auto start facility
    • Remote control via umbilical
    • Dust suppression system
    • Easily set up
    • Fitted with Powerscreen Pulse Telematics system
    • 650mm wide bypass conveyor
    • Fully inclined catwalks
    Options
    • Patented hydraulic deflector plate under crusher
    • Side conveyor /extended side conveyor
    • Single pole/twin pole magnet
    • Radio remote control
    • Belt weigher
    • Electric refuelling pump
    • Hydraulically driven water pump
    • Wire mesh for underscreen
    • Super tooth or multi tooth jaw plates
    • Extended hopper
    • Post-screen available (will add est 6 tonnes to a machine weight)
    • Unblock motor
    • Extended main conveyor
    • Over crusher level sensor
    • Patented hydraulic crusher overload system, ideal for applications with un-crushable material in feed, 200mm3.
    • Pre-screen available
    Specification Table
    Premiertrak 400X / R400X
    Weight (Est) 102,514lbs
    Transport width 9'2"
    Transport length 49' 3"
    Transport height 11' 2"
    Working width 14'2" c/w dirt conveyor
    Working length 48' 1"
    Working height 13' 6"
    * All information subject to machine configurations & specifications ordered.



    ** Powerscreen reserves the right to change specifications without prior notice.
