Premiertrak 420E Hybrid

PRODUCT TYPE: Jaw Crusher

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video

DESCRIPTION

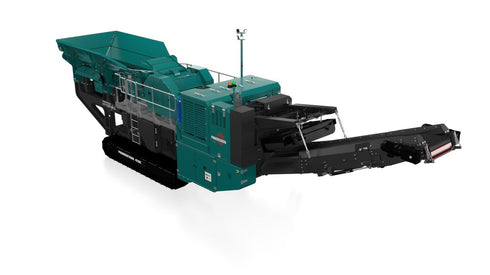

The Powerscreen Premiertrak 420E Jaw Crusher is a mid-range crusher used in recycling, quarrying, and mining applications. The crusher features a 1070mm x 760mm (42’’ x 30’’) single toggle jaw chamber. As part of Powerscreen’s hybrid range, the 420E has been designed to give customers alternative energy options to operate on site. Dual power options let users choose which power source to use. Hybrid machines can be of special interest if operating in an area where electricity is more cost effective than diesel fuel.

    Features & Benefits
    • Output Potential: up to 400tph (441 US tph)
    • High output and excellent reduction capability
    • Pan feeder & PreScreen
    • Wear resistant hydraulic folding feed hopper with hydraulic wedge fixing system
    • Excellent under crusher access with a hydraulic raise/lower conveyor system
    • Economical to operate with a highly efficient direct drive system
    • Aggressive crushing action with high swing jaw
    • Deep fines chute to reduce material blockages
    • Hydraulic crusher setting adjustment
    • Hydraulic crusher release
    • Stepped self-cleaning grizzly with under feeder screen option
    • Height adjustable product conveyor
    • Extended hopper
    Options
    • Deflector plate under crusher
    • Side conveyor / extended side conveyor
    • Single pole/ twin pole magnet
    • Radio remote control
    • Belt weigher
    • Extended hopper
    • Grizzly feeder
    • Post screen
    • Electric refuelling pump
    • Hydraulic water pump
    • Underscreen wire mesh
    Specification Table
    420E Hybrid
    Weight (Est) 119,711lbs
    Transport width 9' 6"
    Transport length 47' 8"
    Transport height 11' 6"
    Working width 20' 4"
    Working length 51' 8"
    Working height 12' 1"

    * All information subject to machine configurations & specifications ordered.

    ** Powerscreen reserves the right to change specifications without prior notice.
