Premiertrak 600 / 600E

PRODUCT TYPE: Jaw Crusher

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video

DESCRIPTION

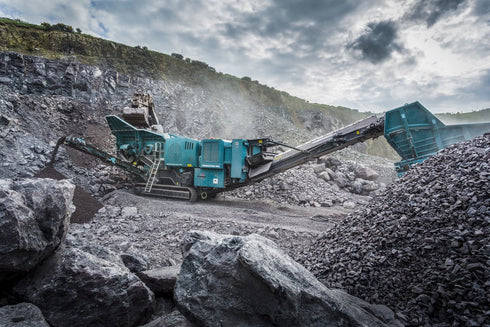

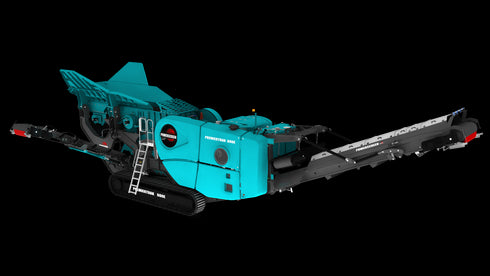

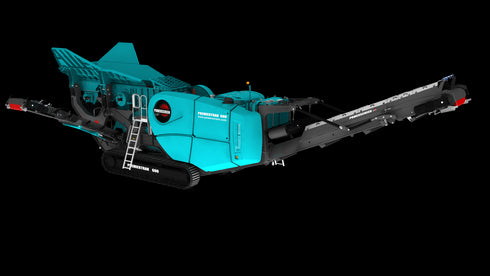

The Powerscreen® Premiertrak 600 range of high performance jaw crushers are designed for large and medium scale operators in quarrying, demolition, recycling & mining applications. The range includes the Premiertrak 600 & Premiertrak 600E both equipped with the advanced high performance 1200mm x 820mm Terex chamber. Built for the toughest of applications, the robust construction and modern design of the Premiertrak 600 ensures optimum performance, reliability and efficiency. The Premiertrak 600E comes complete with an onboard diesel generator. The machine can be powered from this, or from an external power supply. There is sufficient excess power available to run a second machine such as a screener. This versatility along with the electrically driven crusher and conveyors makes the PT600E highly efficient, economical and environmentally friendly.

    Features & Benefits
    • Output potential up to 600tph (661US tph) and excellent reduction capabilities
    • Excellent under crusher access with a hydraulic raise and lower on conveyor
    • Ground level quick setup with hydraulic folding hopper with hydraulic lock system
    • Heavy duty wear resistant feed hopper
    • Modular product conveyor with raise/lower facility to aid rebar clearance, transport & maintenance
    • Aggressive crushing action with hgh swing jaw encouraging material entry in crusher chamber
    • Low running costs & fuel consumption due to direct crusher drive & efficient plant controls
    • Fully hydraulic crusher setting adjsutment
    • Wide bypass chute to optimize material flow
    • Fitted with Powescreen Pulse Telematics system.
    Options
    • Pre Screen system
    • Single pole/twin pole overband magnet
    • Radio remote control
    • Belt weigher
    • Electric refuelling pump
    • Hydraulic water pump
    • Side conveyor
    • Deflector plate under crusher
    • Quarry / pyramid tooth or heavy duty fixed jaw plates
    • Stockpiler drive
    • Maintenance platform
    • Electric urea pump
    Specification Table
    Premiertrak 600 Premiertrak 600E
    Weight (Est) 68,875kgs (151,843lbs) 72,725kgs (162,535lbs)
    Transport width 3.0m (9'10") 3.12m (10'3")
    Transport length 17.1m (56'1”) 17.1m (56'1”)
    Transport height 3.8m (12'5") 3.8m (12'5")
    Working width 8.09m (26'5") 8.09m (26'5”)
    Working length 16.63m (54'7”) 16.63m (54'7”)
    Working height 4.49m (14'9") 4.49m (14’'9")



    * All information subject to machine configurations & specifications ordered.

    ** Powerscreen reserves the right to change specifications without prior notice.
