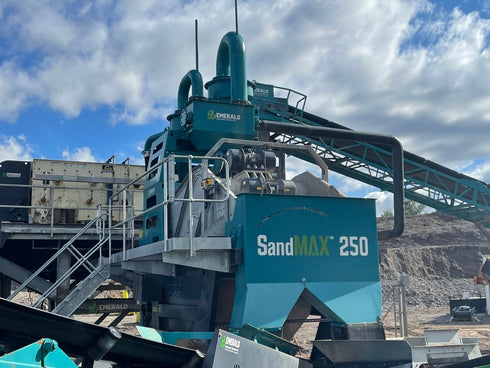

SandMAX Ultrafines Sandplant

CLICK HERE to download brochure
CLICK HERE to view video
DESCRIPTION

    SandMAX™ range are modular sand washing and classification units which are energy and cost efficient on a single modular chassis. The sandplants utilize centrifugal force within the cyclones to remove silts, clay and slimes from the sand slurry to produce a clean specification.

    Modular design enables fast setup time onsite with minimal footprint.  Precise classification within the cyclones allows maximum recovery of all saleable material reducing pond maintenance and cleanout costs

    Specification

    • Linatex rubber lined slurry pump
    • Linatex rubber lined cyclones ( 4 off)
    • Self regulating cyclone tank
    • High frequency Galvanized dewatering screen fitted with polyurethane modular mats
    • Maximum recovery of material above 400 mesh
    • Low moisture final product
    • Blending capability to enhance sand specification
    • Market ready sand
    • Gravity fed from ScreenMAX to reduce installation costs
    • Dirty water can be gravity fed to a WaterMAX water management system without  inground sumps / pumps

    Options

    • Control panel with additional starters and remote diagnostics
    • Ultra fines cyclones to cut material at tighter mesh
    • High capacity ultrafines plant


    Feed in height 8'
    Screenbox size 8.5'
    Working length 24'
    Working width 12'
    Working height 18'
