CBI ChipMax 484

PRODUCT TYPE: Wood Chipper

VENDOR: CBI

CLICK HERE to download brochure
CLICK HERE to view video
DESCRIPTION

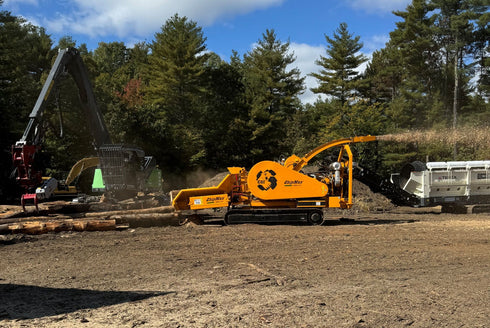

 This compact and reliable drum chipper consistently out-produces other drum chippers by up to 50 percent on a daily basis and has a high-production capability of 120-plus tons per hour. CBI drum chippers are purpose-built machines customized to fit each customer’s individual business needs. The rotor, chipper box and feed system are the strongest in its class as this drum chipper provides owners with years of trouble free service. Featuring two rotor options, the CBI ChipMax can make high-quality fuel chips custom sized from 12–25mm or “micro-chips” from 2–12mm from logs up to 24" in diameter. These wood microchips produce a consistent fiber length that dramatically reduces the overall cost of producing pellets as well as improving the function of small boilers. If you're looking for a drum chipper solution for your application, the ChipMax is an extreme-duty biomass production workhorse.
    Features & Benefits
    • Quick set up time typically under 15 minutes
    • High capacity
    • Rotating discharge chute
    • 4 or 2 pocket rotor options
    • Redesigned infeed
    • Larger feed opening, & lower winged side walls
    • Sloped deck and reverse pivoting feed yoke
    • 48” wide discharge belt
    • High ground clearance
    • Remote operated
    • Metal Detection System
    • CAT C18 755hp engine
    • Wheel or Track options
    Specification Table
    484BT 484BP
    Weight (Est) 56,000lbs 55,000lbs
    Transport width 8'4" 8’4”
    Transport length 30’4” 30’2”
    Transport height 11’7” 13’6”
    Working width 8’4” 8’4”
    Engine C18 765hp C18 765hp
    Rotor width 48” 48”
    Infeed (width) 48” 48”



    * All information subject to machine configurations & specifications ordered.

    ** CBI reserves the right to change specifications without prior notice.
