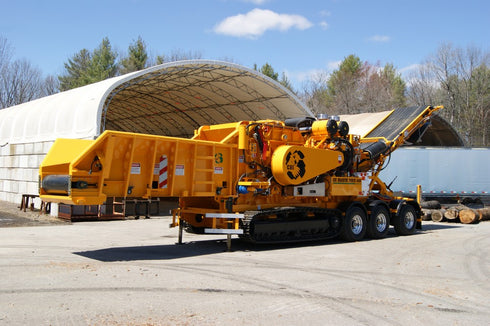

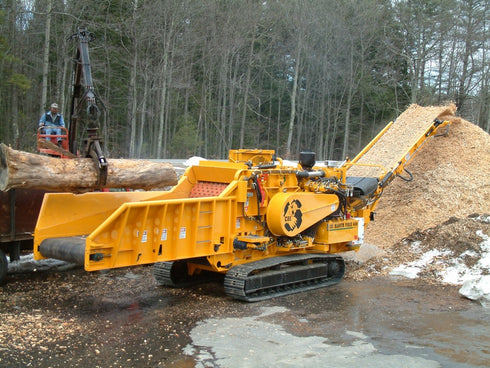

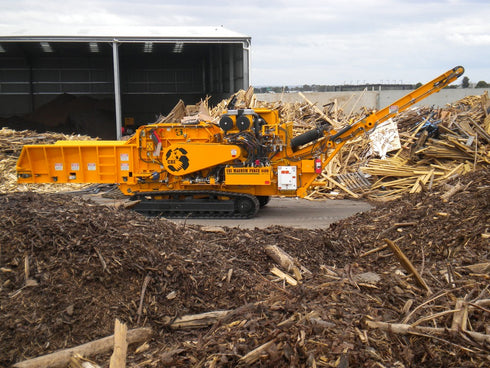

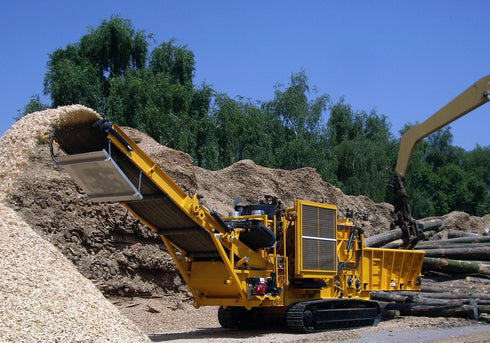

CBI 6400T Downswing Grinder

PRODUCT TYPE: Horizontal Grinder


CLICK HERE to download brochure
CLICK HERE to view video
CBI Magnum Force 6400T delivers uncompromised production, efficiency, durability, quality, and ease of maintenance. The Magnum Force Series 6400B Horizontal Grinder has been specifically re-designed for land clearing companies and yard waste processors who demand high-volume throughput and maximum reliability. Offering maximum flexibility it can be utilized as a whole tree chipper by installing a 2 or 4 pocket rotor.
    Features & Benefits
    • Quick set up time typically under 15 minutes
    • High capacity
    • Downswing grinder
    • Forged 40” x 60” rotor
    • Replaceable tips
    • Clamshell hogbox for ease of maintenance
    • Direct line to lift and remove grates
    • Bolt in replaceable hardox liners in hog box
    • 60” wide discharge belt
    • High ground clearance
    • Mounting brackets for overband magnet
    • Upper roll with internal drive
    • Remote adjust crush force
    • Hydrostatic closed loop hydraulic system
    • 2 speed track motors
    • Medal Detection System (MDS) with auto stop / raise & reverse features
    • Flexxaire Auto-reversible fan for automated cleaning
    • CAT Air filtering system
    • CAT C27 1050hp with PT Tech hydraulic clutch
    Specification Table
    Weight 90,000lbs
    Transport length 40’10”
    Transport width 10’2”
    Transport height 12’10”
    Discharge height 15’10”

    * All information subject to machine configurations & specifications ordered.

    ** Terex Ecotec reserves the right to change specifications without prior notice.
