CBI Magnum Force 6800B Upswing Grinder

PRODUCT TYPE: Horizontal Grinder


CLICK HERE to download brochure
CLICK HERE to view video

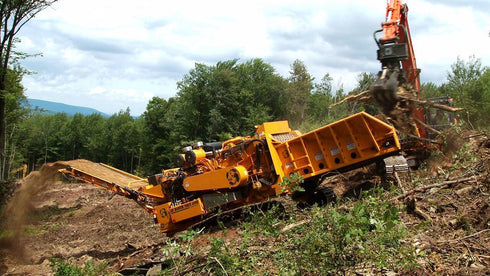

CBI Magnum Force 6800B delivers uncompromised production, efficiency, durability, quality, and ease of maintenance. The best grinder on the market just got better. The Magnum Force Series 6800B Horizontal Grinder has been specifically re-designed for land clearing companies and yard waste processors who demand high-volume throughput and maximum reliability. The first grinder ever made that can grind whole trees as fast as a 30" chipper can chip – with a fraction of the prep and maintenance!
    Features & Benefits
    • Quick set up time typically under 15 minutes
    • High capacity
    • Upswing grinder
    • Forged 40” x 60” rotor with offset-helix hammer pattern
    • Replaceable tips
    • Split hog box for ease of maintenance and screen change
    • Bolt in replaceable hardox liners in hog box
    • 60” wide cleated discharge belt
    • High ground clearance
    • 60” x 60” shuttle conveyor to divert screened out material
    • Upper roll with internal drive
    • Remote adjust crush force
    • Hydrostatic closed loop hydraulic system
    • 2 speed track motors
    • Automatic reversing pitch radiator fan
    • CAT C27 1050hp with PT Tech clutch
    Specification Table
    Weight 88,000lbs
    Transport length 40’4”
    Transport width 11’1”
    Transport height 12’
    Discharge height 15’10”

    * All information subject to machine configurations & specifications ordered.

    ** Terex Ecotec reserves the right to change specifications without prior notice.
