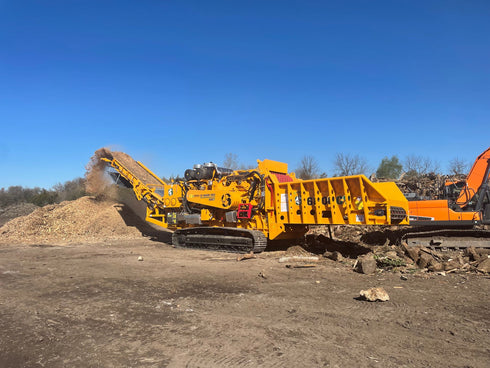

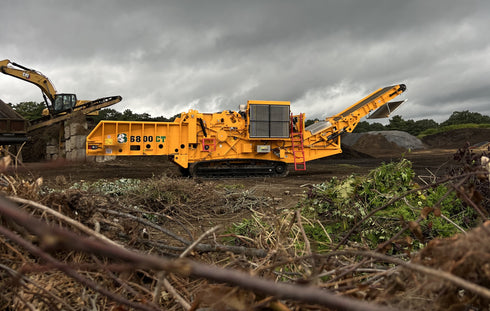

CBI 6800CT Upswing Grinder

PRODUCT TYPE: Horizontal Grinder


CLICK HERE to download brochure
CLICK HERE to view video
 The CBI Magnum Force 6800CT Horizontal Grinder has been engineered to surpass every horizontal grinder that came before it. Once land clearing and wood waste professionals switch to CBI grinders for their ultimate production, performance, and durability, they never look back. This is the best horizontal grinder on the market. Improving on the 6800BT’s revolutionary design, the 6800CT has a 15 percent larger screening area, wrapping more than 190° around the rotor, allowing production rates to surge beyond 200 tons an hour. Supported by a larger shaft and bearings and an optional 1200hp CAT C32, the engine powers the forged drum rotor through the toughest materials. The design of CBI’s offset helix rotor minimizes energy loss from each strike and distributes material evenly across the 24 hammers, requiring less power while outproducing the competition.
    Features & Benefits
    • Quick set up time typically under 15 minutes
    • High capacity
    • Upswing grinder
    • Forged 60” x 40” rotor with offset-helix hammer pattern
    • Replaceable tips
    • Split hog box for ease of maintenance and screen change
    • Bolt in replaceable hardox liners in hog box
    • 60” wide discharge belt
    • High ground clearance
    • Larger rotor shaft and bearings
    • Metal Detection System
    • Remote adjust crush force
    • Hydrostatic closed loop hydraulic system
    • Optional Magnet
    • Variable speed fan
    • CAT C27 1050hp engine ( 1200hp optional)
    Specification Table
    Weight 86,500lbs
    Transport length 43’2”
    Transport width 11’1”
    Transport height 12’
    Rotor Size 60” (width)
    Rotor Size 40” (Dia)
    Engine CAT C27
    Discharge height 16’8”

    * All information subject to machine configurations & specifications ordered.

    ** CBI reserves the right to change specifications without prior notice.
