CRC1150 Portable Cone

PRODUCT TYPE: Cone Crusher

VENDOR: Cedarapids

CLICK HERE to download brochure
CLICK HERE to view video

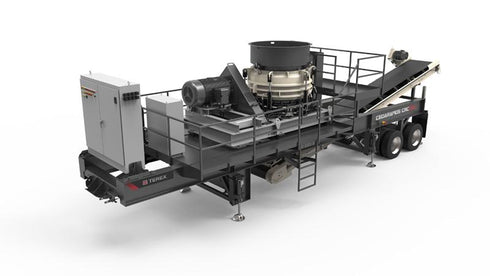

The Cedarapids® CRC1150 cone plant delivers big production at an affordable price. The highly mobile plant features the TC1150 cone crusher that utilizes high efficiency roller bearings and boasts several notable advancements that enhance performance and functionality. Key features include automated cone controls and larger closed side settings. The crusher is powered by a 300 hp (225kW) motor and drive, all mounted on a rubber isolated frame. The plant includes an oversize cone feed hopper extension with overflow chute, “straight-line” undercrusher conveyor, metal detector, and service platforms. Easy maintenance features include conveniently located grease banks and a ground access cone lubrication module.



    Features & Benefits
    • Output Potential: up to 320 US tph
    • TC1150 cone crusher with high efficiency roller bearing construction
    • Single 300hp crusher motor and drive mounted on a rubber isolated frame
    • Automated cone controls
    • Oversize quick release cone feed hopper with gated overflow chute
    • Ground access cone lubrication module
    • Service platforms around crusher
    • Highly portable tandem axle design
    • Rugged straight line product conveyor
    • Metal detector for off plant feed conveyor
    • Removable electrical switchgear panel with crusher soft start and push button station
    • Manual crank style landing jacks
    • Power cables and quick disconnects
    • Hydraulic leveling or run on jacks
    Specification Table
    Weight (Est) 60,900lbs
    Transport width 11'11"
    Transport length 46’11”
    Transport height 13'1"
    Working width 11'11"
    Working length 46’11”
    Working height 14'6"

    * All information subject to machine configurations & specifications ordered.

    ** Terex Cedarapids reserves the right to change specifications without prior notice
