CRC320 Portable Cone

PRODUCT TYPE: Cone Crusher

VENDOR: Cedarapids

CLICK HERE to download brochure
CLICK HERE to view video
DESCRIPTION

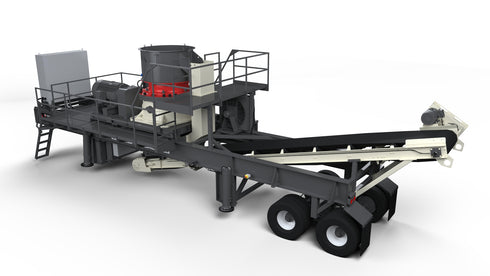

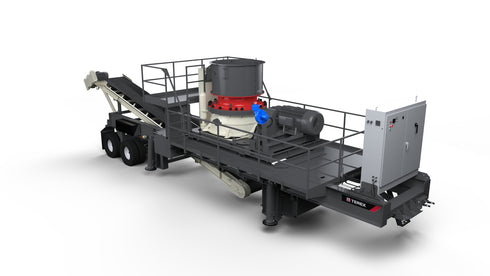

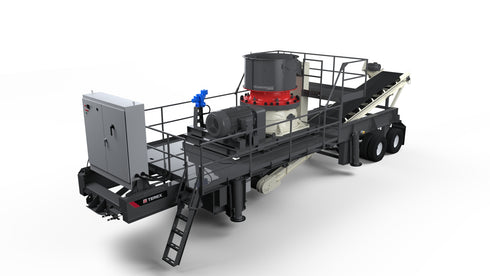

The CRC320 combines the TG320 cone and a 15 hp, 42” wide discharge conveyor on a portable all electric chassis. The crusher is fitted with an overflow chute and removable overflow panel so the overflow can buffer feed surges in a closed circuit application. The trailer width and length allow easy movement from site to site. The plant has a variety of jack options available from simple crank landing to unique patent pending "canted" run-on jacks that stabilizes the movement of the crusher.

    Features & Benefits

    • TG320 bronze bushing cone with adjustable eccentric throw and multiple liners matches most any application
    • 300 hp (224 kW) 1800 rpm crusher motor and drive mounted with crusher on rubber isolated frame
    • Oversize cone feeder hopper extension with removable overflow panel and overflow chute
    • 42” x 34’6” (1067 x 10,515 mm), 3-ply conveyor belt with vulcanized belt splice and primary style belt wiper driven by a 15 hp (11kW) electric motor and shaft mount gearbox
    • Service platforms with elevated observation deck, guard rails and access ladder
    • Easy maintenance features:  remote grease lines, ground access cone lubrication module
    • Emergency stop buttons on both sides of frame
    • Tandem axle spring suspension with eight 295/75 R22.5 tires
    • 48” (1219 mm) long lockable side-mounted storage box
      Options
      • Removable CCM™ automatic switchgear panel
      • Four 18” stroke leveling jacks
      • Four 24” stroke run-on jacks
      • Hydraulic Power Unit (Gas, 12V, 24V)

        Specification Table

        CRC320

        Weight (Est)

        75,650 lbs

        Transport width

        11' 11"

        Transport length

        46'10"

        Transport height

        13' 9"

        Working width

        11' 11"

        Working length

        45' 4"

        Working height

        14' 9"



        * All information subject to machine configurations & specifications ordered.

        ** Terex Cedarapids reserves the right to change specifications without prior notice.
