PRODUCT TYPE: Recycling Screen

VENDOR: Terex Ecotec

CLICK HERE to download brochure
CLICK HERE to view video

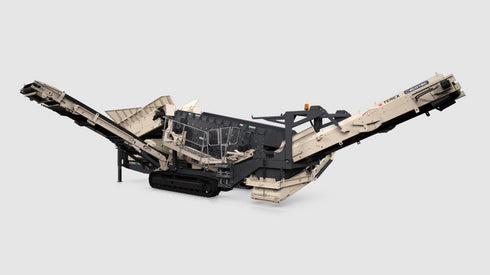

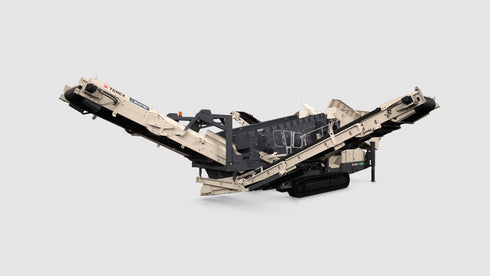

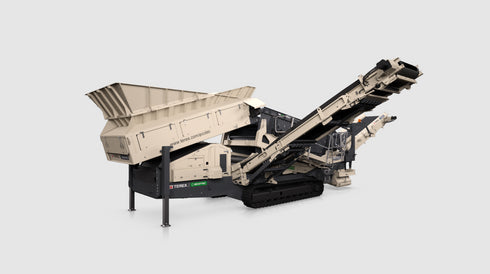

Ecotec's TRS 550 Recycling Screen is a highly efficient and versatile mobile screening machine, with a specialist screenbox from German manufacturer Spaleck. The proven Terex platform, with standard features such as a steel apron feeder, combined with state of the art 3D top deck screening panels and a highly aggressive flip-flow bottom deck allow the TRS 550 to perform in the most difficult of applications.

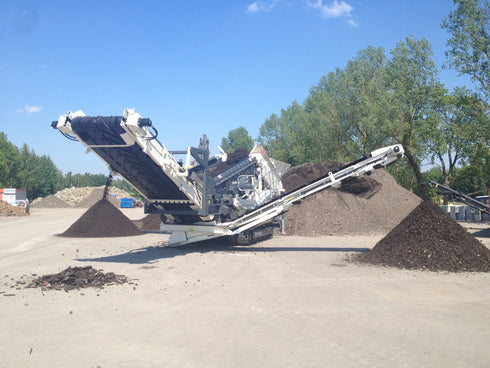

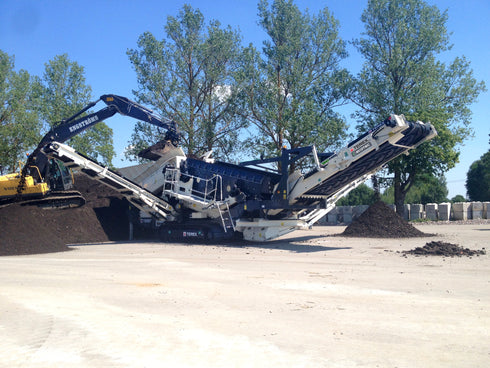

The intelligent 3D top deck design virtually eliminates blockages while the aggressive flip flow mats never blind over even in the dampest of material, greatly reducing downtime and maximizing production capabilities. Scrap metal, compost, wood chips, difficult soils, auto fluff and C&D waste are just a few of the many applications this machine excels in.

Features & Benefits
  • Heavy duty, abrasion resistant, steel apron feeder as standard.
  • 3D punchplate as standard.
  • Virtually blockage free using intelligent design.
  • Optional 3D Rubber panels available.
  • Optional heavy duty rubber top deck available.
  • Aggressive flip-flow bottom deck. Secured with friction wedges, no securing bolts.
  • Screenbox discharge end can be hydraulically raised 500mm to facilitate efficient and easy media access and changing.
Specification Table
CAT C4.4 111.3HP @ 2200 RPM / CAT C4.4 83kW @ 2200 RPM
No. Stockpilers
3 / 3
67,241lbs / 30,500kg

* All information subject to machine configurations & specifications ordered.

** ECOTEC reserves the right to change specifications without prior notice.
