Emerald Electric Conveyors

Name: Emerald Electric Conveyors
Brand: Emerald Modular Washing
Availability: InStock

PRODUCT TYPE: Conveyor

VENDOR: Emerald Modular Washing

Add To Compare Added To Compare

CLICK HERE to download brochure

CLICK HERE to view video

DESCRIPTION

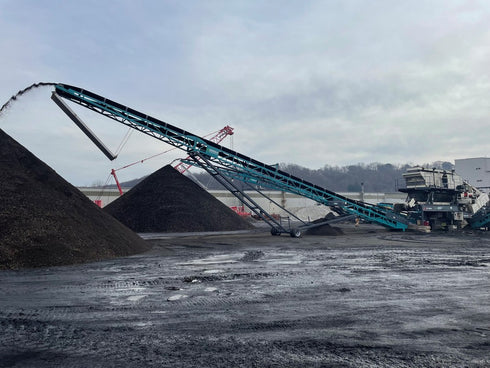

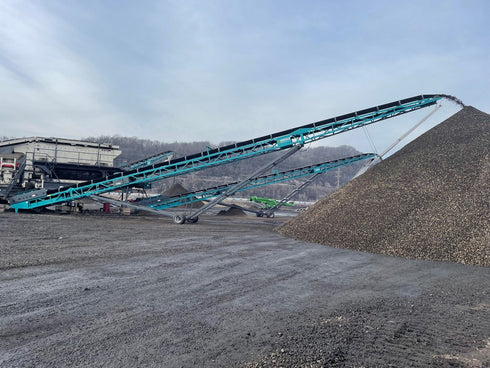

Emerald Range of mobile conveyors are offered in both electric and diesel versions as standard. Typical stock machines range from 65' - 120' with custom versions up to 200'. Suitable for a variety of applications such as much, sand & gravel and quarry materials. Large target area feedboot enables the conveyor to be placed directly after a crusher or screener

Features

36” wide 3 ply vulcanized
Feedboot with liners
Manual lift
Radial single axle dual wheels
Heavy duty Lattice frame
Manual top & front fold

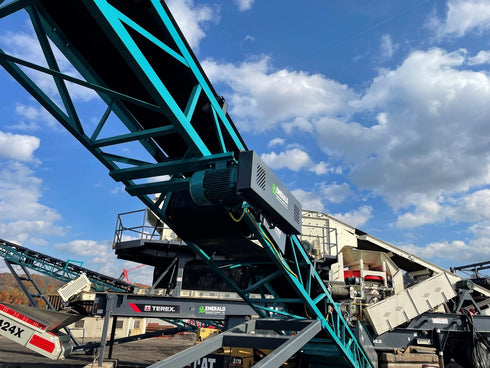

Electric wrap drive
Head & tail drum scrapers
Remote greasing

Options

Walkways
Dust covers / Suppression
Belt weighers
Feedboot extensions
Magnetic head drum
Anti roll back measures
Hydraulic raise / lower / radial
Other custom options available
Diesel drive

Specification Table


	PC6536	PC8036	PC10036
Belt length	65'	80'	100'
Belt Width	36"	36"	36" 3
Towing width			8' 10"
Transport length (head folded)			74' 8"
Transport height (head folded, tow)			12’10”
Discharge height		32'	31'
Stockpile capacity		18503yd3
