Powerscreen 1000SR Cone Crusher

PRODUCT TYPE: Cone Crusher

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video

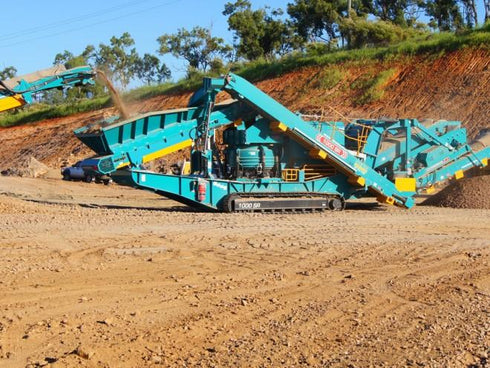

The Powerscreen® 1000SR mobile cone crusher is built around the successful 1000 Maxtrak model and features a re-circulating conveyor and a double-deck post-screen to provide a complete crushing and screening process on a single chassis. The machine is designed for direct feed applications without pre-screening on clean rock.

At its heart is the Automax® cone crusher which provides excellent reduction and product cubicity for the production of high quality aggregate and sub-base material. Hydraulic release capabilities are designed so that any uncrushable material entering the chamber is safely discharged. Suitable for secondary and tertiary applications, the 1000SR can produce up to three products when oversized material doesn’t require re-circulation to the crusher.

    Features & Benefits
    • Output Potential: up to 230 tph (253 US tph)
    • Renowned Automax® crusher technology
    • Accepts clean all in feed
    • Excellent product shape
    • High reduction ratio
    • Cone feed box level control to maintain choke feeding
    • Hydraulic crusher setting
    • Cone overload protection
    • Heavy duty chassis and track frame
    • Metal detector
    • Dust suppression system
    • Economical to operate with a highly fuel efficient direct drive system
    • Combines crushing and screening capabilities on a single plant
    • Patented double deck post screen
    • Suitable for re-circulating oversized material
    • Concaves: extra coarse, medium coarse, coarse, Autosand®
    • Short throw eccentric
    • Feed hopper extension plates
    • Feed hopper level sensor
    • Product conveyor belt weigher
    • Electric refuelling pump
    • Hydraulic water pump
    • Radio remote control

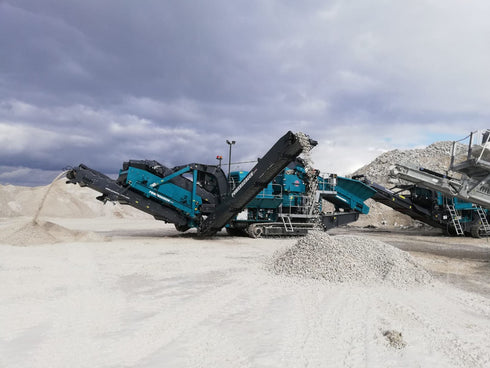

    • Additional stockpiling for mid-grade product
    Specification Table
    1000SR Maxtrak
    Weight 39,640kgs (87,391lbs)
    Transport width 3.1m (10'2")
    Transport length 16.9m (55'5")
    Transport height 3.45m (11'4")
    Working width 3.1m (10'2")
    Working length 16.9m (55'5")
    Working height 4.85m (15'11")


    * All information subject to machine configurations & specifications ordered.

    ** Powerscreen reserves the right to change specifications without prior notice.
