Powerscreen 1400 Maxtrak Cone Crusher

PRODUCT TYPE: Cone Crusher

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video

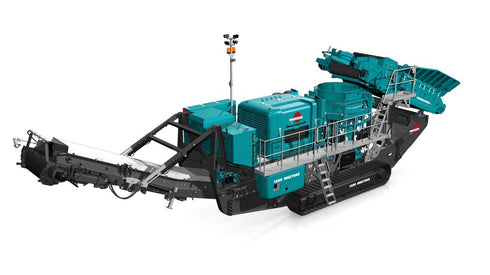

The Powerscreen® 1400 Maxtrak is a medium to large sized track mobile cone crusher which is ideally suited to secondary applications such as taking an all in feed from a primary crusher. Based around the Terex 1380mm cone chamber, the plant excels in the production of sub-base or aggregates, providing excellent cubicity, throughput and reduction ratios.

    Features & Benefits
    • Output Potential: up to 330 tph (364 US tph)
    • Accepts all in clean feed
    • Excellent product shape
    • High reduction ratio
    • Hydraulic crusher setting
    • Cone feed box level control to maintain choke feeding
    • Heavy duty chassis and track frame
    • Metal detector
    • Cone overload protection
    • Dust suppression system
    • Economical to operate with a highly fuel efficient direct drive system
    • Maintenance free hydraulic anti-spin clutch helping improve wear liner life
    • Fitted with Powerscreen Pulse Telematics system
    • Feed hopper extension plates
    • Feed hopper level sensor
    • Concave: Extra coarse, medium coarse, fine
    • Short throw eccentric
    • Camera over crusher
    • Product conveyor belt weigher / stockpile sensor
    • Product conveyor dust covers
    • Hot / Cold weather oil / coolers
    • Electric re-fueling pump
    • Hydraulic water pump
    • Urea re-fueling pump
    • Control panel positive air pressurization
    • Radio remote control
    Specification Table
    1400 Maxtrak
    Weight 61,000kgs (134,482lbs)
    Transport width 3.0m (9'10")
    Transport length 17m (55'6")
    Transport height 3.8m (12'6")
    Working width 4.18m (13'9")
    Working length 18.5m (60'8")
    Working height 6.0m (19'8")


    * All information subject to machine configurations & specifications ordered.

    ** Powerscreen reserves the right to change specifications without prior notice.
