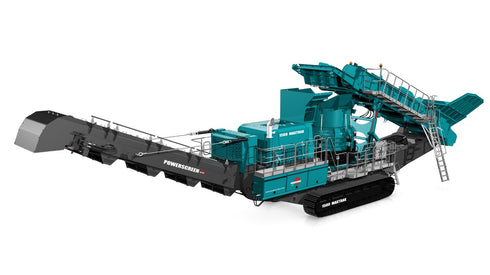

Powerscreen 1500 Maxtrak Cone Crusher

PRODUCT TYPE: Cone Crusher

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video


The new Powerscreen® 1500 Maxtrak is one of the largest mobile cone crushers on the market. Specifically developed for larger users, the plant can accept an all in feed from a primary crusher to produce large volumes of aggregate.

With the Powerscreen® 1500 Automax® cone crusher, operators benefit from hydraulic overload protection, a large throughput, excellent product cubicity and a high reduction ratio.


    Features & Benefits
    • Output Potential: up to 950 tph (1047 US tph)*
    • Renowned Automax® crusher technology
    • Excellent product shape
    • High reduction ratio
    • Cone feed box level control to maintain choke feeding
    • Hydraulic crusher setting
    • Cone overload protection
    • Heavy duty chassis and track frame
    • Large feed hopper with folding sides, wear resistant liners and crash box
    • Feed conveyor folds for maintenance and removes for transport
    • Metal detector
    • Dust suppression system
    • Electric refuelling pump
    • Plant lighting
    • Intelligent PLC control system
    • Economical to operate with a highly efficient direct drive system
    Specification Table

    1500 Maxtrak
    Weight (Est.) 89,000kgs (196,211lbs)
    Transport width 3.5m (11'6")
    Transport length 22m (72'6")
    Transport height 3.85m (12'8")
    Working width 5.1m (16'9")
    Working length 23.9m (79'9")
    Working height 6.2m (20'8")
