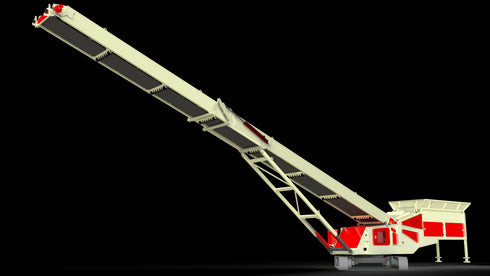

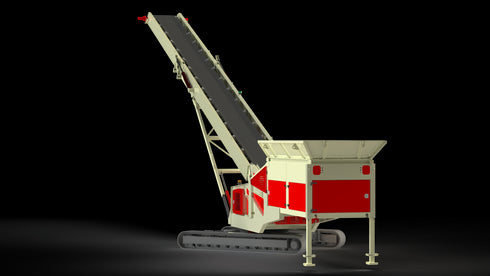

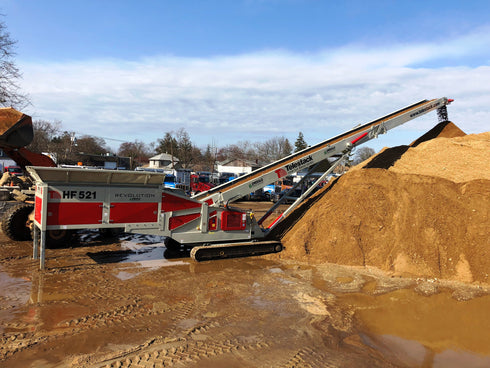

HF521 Revolution

PRODUCT TYPE: Hopper Feeder Conveyor

VENDOR: Telestack

Add To Compare Added To Compare
CLICK HERE to download brochure
CLICK HERE to view video

DESCRIPTION

The Telestack Revolution Series comprises of the hopper feeder range with centre mounted slew bearing that enables 360° rotation and movement of the hopper to enhance the mobility on site. This is the latest innovation from Telestack to ensure the ultimate flexibility of the Hopper feeder range when in a range of application.

The mobility feature makes it ideal for barge loading and unloading, rail loading / unloading and stockpiling, the ability to move parallel enables the operator to maneuver the unit parallel to the vessel removing the need to reposition the unit, when Ship-loading or Ship-Unloading thus enhancing loading rates and efficiency.
    Features
    • Output Potential: up to 550 US tph
    • 48” wide feeder belt
    • 14’ 9yd3 hopper capacity
    • 48” x 70’ belt
    • CAT C4.4 100hp water cooled engine
    • Hydraulic raise / lower incline conveyor
    • Heavy duty mid section for large lump size
    • Heavy duty folded plate chassis
    • Slew mounted chassis for 360° rotary motion
    • Hydraulic fold head section
    • Mobility: Inline travel / 360° rotation / Parallel travel
    Options
    • Dual power ( electric motor driven)
    • Hopper with bolt-in liners
    • 12 / 16yd3 hopper capacity
    • Up to 10” feed material
    • Dust covers / Suppression
    • Belt weighers
    • Feedboot extensions
    • Feedboot extensions
    • Anti roll back measures
    Specification Table
    HF 521 Revolution
    Weight (Est) 46,300lbs
    Transport width 10' 1”
    Transport length (head folded) 58’7”
    Transport height (head folded) 11’
    Discharge height 29’6”
    Stockpile capacity 1,806yd3 / 2,435t

    * All information subject to machine configurations & specifications ordered.

    ** Telestack reserves the right to change specifications without prior notice.
