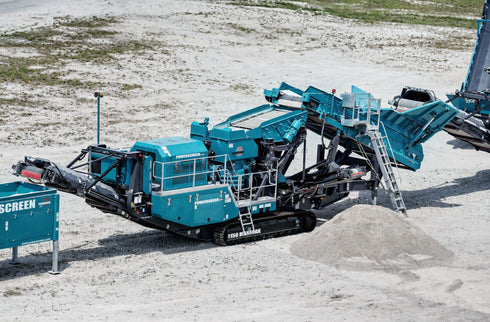

Powerscreen 1150 Maxtrak Cone Crusher

PRODUCT TYPE: Cone Crusher

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video


The Powerscreen 1150 Maxtrak is a high performance, medium sized track mobile cone crusher. At the heart of the Maxtrak is the Automax cone crusher with hydraulic setting, tramp release, and unblocking system. Its unique crushing action provides excellent capacity, high reduction, and good product cubicity for the production of high-quality aggregate and sub-base materials. A level probe over the feed ring regulates the feed belt to ensure the cone chamber is choke fed, essential for maximum reduction, manganese life, and optimal product shape.

    Features & Benefits
    • Output Potential: up to 300 tph (330 US tph)
    • Renowned Automax® crusher technology
    • Accepts all in clean feed
    • Excellent product shape
    • High reduction ratio
    • Hydraulic crusher setting
    • Cone overload protection
    • Heavy duty chassis and track frame
    • Metal detector
    • Cone feed box level control to maintain choke feeding
    • Dust suppression system
    • Economical to operate with a highly fuel efficient direct drive system
    • Fitted with Powerscreen Pulse Telematics system
    • Feed hopper extension plates
    • Feed hopper level sensor
    • Concave: Extra coarse, medium coarse, fine
    • Short throw eccentric
    • Camera over crusher
    • Product conveyor belt weigher / stockpile sensor
    • Product conveyor dust covers
    • Hot / Cold weather oil / coolers
    • Electric re-fueling pump
    • Hydraulic water pump
    • Urea re-fueling pump
    • Radio remote control
    Specification Table
    1150 Maxtrak
    Weight 42,900kgs (94,578lbs)
    Transport width 3m (9'10")
    Transport length 16.9m (55'5")
    Transport height 3.6m (11'10")
    Working width 4.5m (14'9")
    Working length 16.4m (53'10")
    Working height 5.6m (18'4")


    * All information subject to machine configurations & specifications ordered.

    ** Powerscreen reserves the right to change specifications without prior notice.
