Phoenix 3300 Trommel


VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video

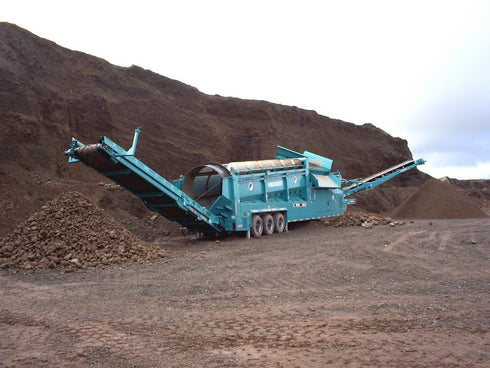

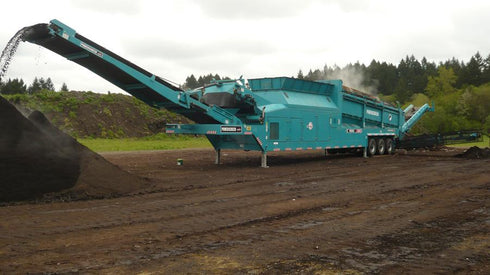

The Powerscreen® Phoenix 3300 is a 2-way split mobile trommel screen designed and built specifically for topsoil, recycling, wood chippings and compost applications. Key features of the Phoenix 3300 include a large screen area, a low maintenance 4 wheel drum drive system, proportional load sensing on the feeder conveyor to eliminate blockages and downtime and hydraulic folding conveyors including a 180° radial fines conveyor.

    Features & Benefits
    • Quick set up time typically under 15 minutes
    • High capacity
    • High performance hydraulic system
    • Friction four wheel drive system on drum
    • Hydraulically adjustable machine working angle
    • Angle adjustable radial coneyor
    • Low maintenance, friction wheel drive system on screen drum
    • Features 4 direct-drive wheel motors (no chain drives, no gearboxes)
    • Bi-directional drum drive allows drum to be reversed or rocked
    • Utilises common mesh panels with Phoenix 2100
    • Variable drum speed
    • Variable feeder speed
    • Low feed-in height
    • One piece collection conveyor
    • Hydraulic folding conveyors
    • Remote control angle adjustable radial conveyor
    • Hydraulic jacking legs to assist during set-up
    • Hydraulic adjustable machine working angle
    • Low maintenance
    • Quick set-up time
    • Remote control tipping bofor type grid 150mm (6")
    • Tipping grid discharge chute
    • 12ft 2-deck vibrating grid with radio control tipping bofor grid 100mm (4") top deck bofor and 38mm (11/2") bottom deck mesk with discharge chute
    • Full length drum walkway to access brushes
    • Woven mesh heavy duty
    • Punch plate mesh (Minimum aperature 3/8") (10mm)
    • ABS type brakes
    Specification Table
    Weight 37,500kg/ 83,600lbs
    Transport length 21.12m/ 69'2"
    Transport width 2.9m/ 9'6"
    Transport height 4.12m/ 13'6"
    Working length 32.27m/ 105'8"
    Working width 15.8m/ 51'9"
    Working height 5.6m/ 18'4"

    * All information subject to machine configurations & specifications ordered.

    ** Powerscreen reserves the right to change specifications without prior notice.
