Phoenix 2100 Trommel

PRODUCT TYPE: Screener

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video

DESCRIPTION

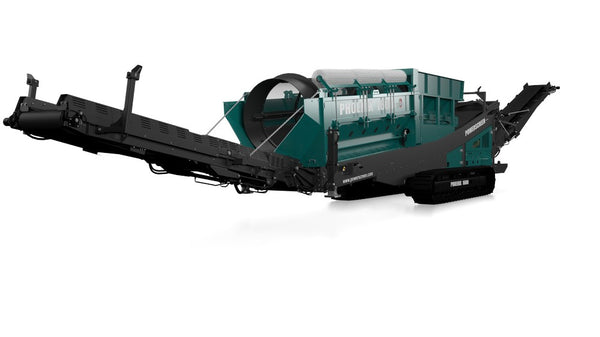

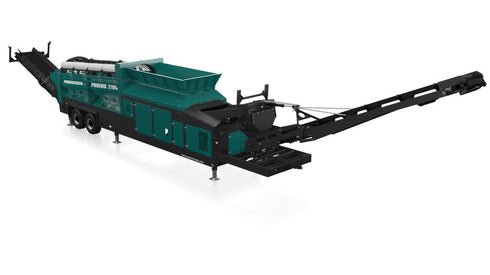

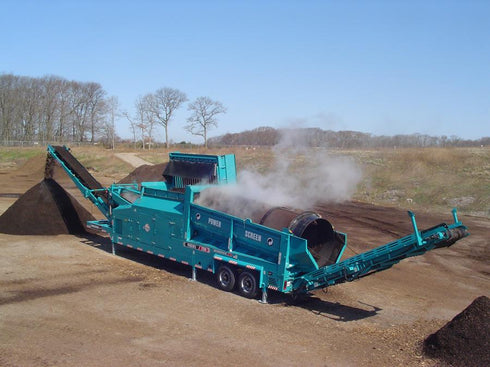

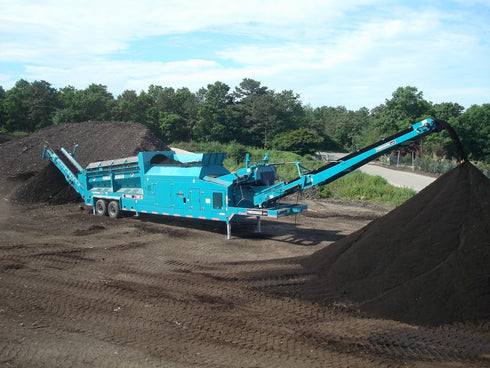

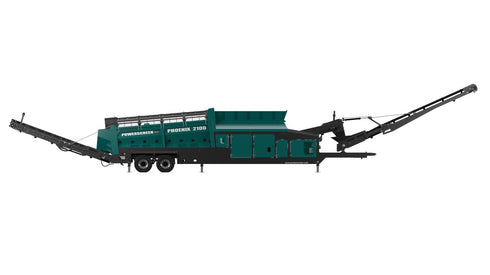

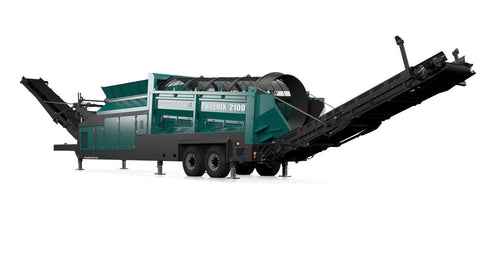

The Powerscreen® Phoenix 2100 is mid sized 2 way split mobile trommel screen designed for quick setup and high throughput. Features of the Phoenix 2100 include a large screen area, low maintenance, 4 wheel friction drum drive system, load sensing kick-out control system on the feeder conveyor and hydraulic folding onboard conveyors. The Phoenix 2100 has been designed to work in: top soil, wood chips, compost and recycling applications.

    Features & Benefits
    • Output potential: up to 200 tph (220 US tph)*
    • Low maintenance, friction wheel drive system on screen drum
    • 4 direct-drive wheel motors (no chain drives, no gearboxes)
    • Bi-directional drum drive allows drum to be reversed or rocked
    • Variable feeder and drum speed
    • Low feed-in height
    • Diesel hydraulic powerunit
    • One piece collection conveyor

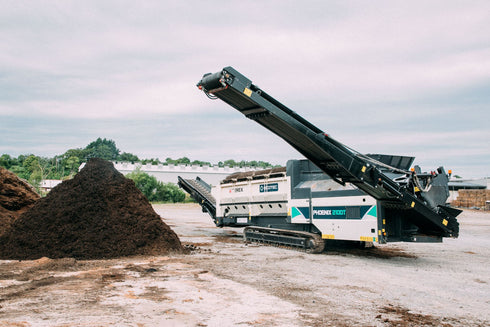

    • Remote control angle adjustable radial conveyor, radials through 180 degrees
    • Hydraulic jacking legs to assist during set up
    Options
    • Tri-axle bogie
    • Tipping grid
    • Vibrating grid double deck
    • Discharge chute
    • Punch plate mesh
    • Dust canopy
    Specification Table
    Weight (Est) 28,000kg (61,730lbs)
    Transport width 2.60m (8'6")
    Transport length 16.1m (52'10")
    Transport height 3.96m (13'1")
    Working width 7.95m (26'1")
    Working length 27.6m (90'7")
    Working height 5.72m (18'9")



    * All information subject to machine configurations & specifications ordered.

    ** Powerscreen reserves the right to change specifications without prior notice.
