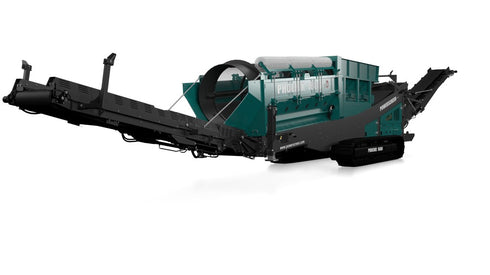

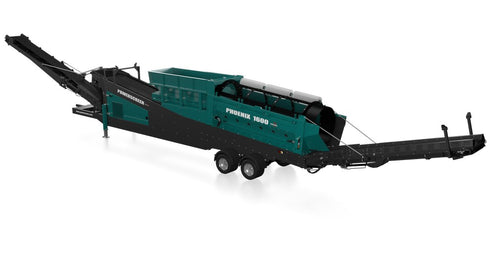

Phoenix 1600 Track Trommel

PRODUCT TYPE: Screener

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video

DESCRIPTION

The Powerscreen Phoenix 1600 Tracked Trommel Screen has been innovatively designed to provide excellent fuel efficiency and low operating costs, whilst also reducing emissions and noise levels due to the machine running at a low engine RPM. With a 4.9m (16’) x 1.54m (5’) drum, unrivalled production throughput is guaranteed due to the screening area, the largest in its class. The tracked configuration allows operators to move the machine around yards with tight spaces and bring the machine to the material for screening.

    Features & Benefits
    • The 180° swivel fines conveyor, with a discharge height of 5.9m (19’4”) results in the creation of impressive stockpiles.
    • This swivel feature can be controlled via a remote while the machine is in operation, minimising downtime.
    • The low engine RPM coupled with the fuel save (stand-by) mode guarantees peak efficiency.
    • The powerful four wheel drive system with high performance friction grip wheels is used to turn the trommel drum giving operators the ability to run bi-directionally.
    • Powerful hydraulics provide excellent service access.
    Options
    • Tipping grid
    • Tipping grid discharge chute
    • Heavy duty woven mesh
    • Punch plate
    • Additional remote control for tracking
    • Different colour paint
    • Powerscreen Pulse
    Specification Table
    Weight 46,500lbs
    Transport length 52' 10"
    Transport width 9' 2"
    Transport height 13' 6"
    Working length 81' 4" - 86' 3"
    Working width 49' 3" - 55' 1"
    Feed height 8' 10"
    Drum size 16'

    * All information subject to machine configurations & specifications ordered.

    ** Powerscreen reserves the right to change specifications without prior notice.
