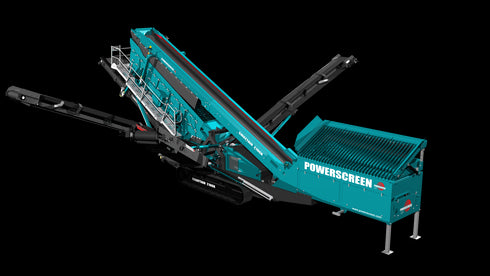

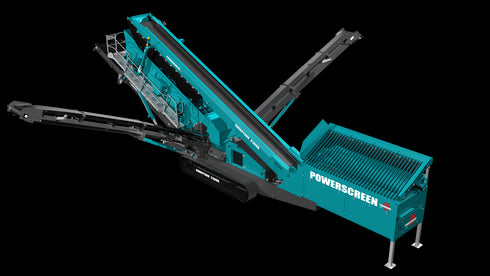

Chieftain 2100X 3 Deck

PRODUCT TYPE: Screener

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video
DESCRIPTION
The Powerscreen® Chieftain 2100X is designed for medium to large scale operators who require large volumes of high specification products. The Chieftain 2100X is the largest model to feature a high capacity hopper, belt feeder and radio controlled tipping grid. Key features include a patented hydraulically folding recirculating conveyor on the 3 deck version eliminating the need for a crane on site and a 2 bearing screen with adjustable screen speed and amplitude with hydraulic screen angle adjustment. p>
User benefits include a quick set-up time (typically under 30 minutes) with hydraulically folding conveyors and track mobility, class leading stockpile discharge heights and a drop down tail conveyor and hydraulically raising main conveyor to aid screen media changes.
    Features & Benefits
    • Output potential up to 600 tph (661 US tph)
    • Radio controlled tipping grid
    • Integrated high capacity variable speed belt feeder
    • Oil bath lubricated 2 bearing screen box
    • Heavy duty single shaft screenboxes with adjustable stroke, angle & speed
    • Hydraulic screen tensioning
    • Screen walkway and access ladder
    • Hydraulic folding conveyors with excellent stockpiling capacity
    Options
    • Wheel or track mobile
    • Double deck vibrating grizzly
    • Radio controlled tracks
    • Dual Power (additional electric hydraulic drive)
    • Roll-in bogie prepared
    • Roll-in bogie equipped
    • Dust suppression
    • Oversize transfer conveyor for Biomass & recycling (3 deck)
    • Extended recirculation conveyor attached for transport (3 deck)
    • Quick release screen wedge tensioning (top/middle decks)
    • Hydraulic screen tensioning (bottom deck)
    • Anti roll-back
    • Auto lubrication system
    Specification Table
    Track DDVG Track
    Weight 37,400kgs (82,453lbs) 41,400kgs (91,271lbs)
    Transport width 3.0m (9'10") 3.0m (9'10")
    Transport length 19.06m (62'7") 18.89m (62')
    Transport height 3.47m (11'5") 3.6m (11'10")
    Working width 18.3m (60') 18.3m (60')
    Working length 19.47m (63'11") 19.28m (63'3")
    Working height 6.29m (20'8") 6.29m (20'8")
    Screenunit 6.1m x 1.55m (20' x 5”) 6.1m x 1.55m (20' x 5')



    * All information subject to machine configurations & specifications ordered.

    ** Powerscreen reserves the right to change specifications without prior notice.
