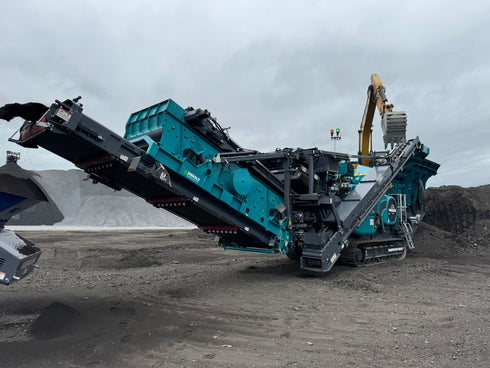

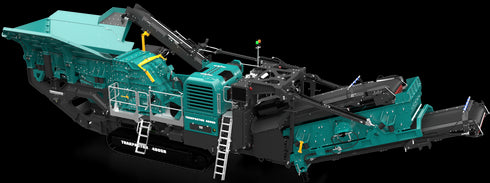

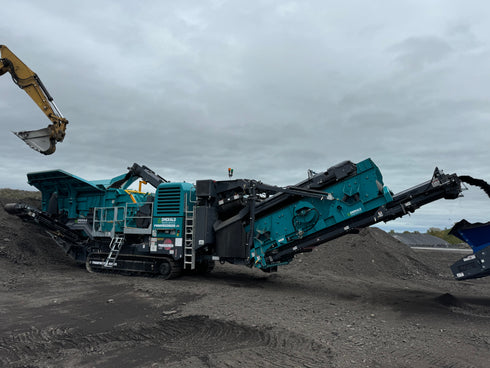

Trakpactor 480/SR Impactor

Name: Trakpactor 480/SR Impactor
Brand: Powerscreen
Availability: InStock

PRODUCT TYPE: Impact Crusher

VENDOR: Powerscreen

Add To Compare Added To Compare

CLICK HERE to download brochure

CLICK HERE to view video

DESCRIPTION

The Powerscreen ® Trakpactor 480SR horizontal shaft impactor is designed for processing soft to medium-hard primary & secondary materials such as natural rock & construction-derived materials like asphalt, recycling & demolition waste.

Material is fed into the large feed hopper, with a vibrating grizzly feeder which features a selectable crusher bypass facility & optional fines discharge conveyor. Load sensing ensures the wide crusher inlet opening receives a continuous feed of pre-screened material, avoiding unnecessary crusher wear.

The SR section is fully detachable using quick-release hydraulics and electrics. To enable this, the recirculation conveyor slews into transport position along the side of the machine. The recirculating conveyor can also slew from recirculating to a stockpiling position

Features & Benefits

Output potential of up to 480 tph / 529 US tph
Suitable for a variety of feed materials, ideal for recycling, demolition & quarry applications
Double deck grizzly feeder with under screen
Load management system to control feeder speed
Proven impact crusher with hydraulic overload protection, 4 bar rotor & twin apron design
Heavy duty under crusher impact bars as standard
Chamber drive via clutch & highly fuel efficient direct drive system
Crusher speed variation through user friendly PLC control system
Recirculating conveyor can slew from recirculating to stockpiling position
SR section detaches using quick release hydraulics & electrics - recirculating conveyor remains on main unit
Radio remote control as standard
Powerscreen Pulse telemetry as standard

Options

Bypass conveyor selection on RHS of plant
Hydraulic raise/lower magnet
Blow bars
Single / Twin pole magnets
Hopper Extensions
Bypass conveyor
Mid size stockpiling conveyor

Specification Table

	480	480SR
Weight	105,270	115,112lbs
Transport width	9' 2"	11' 10"
Transport length	53' 9"	62' 6"
Transport height	11' 10"	11' 4"
Working width	17' 10"	19' 8"
Working length	52' 2"	60' 9"
Working height	13' 11"	13' 11"
