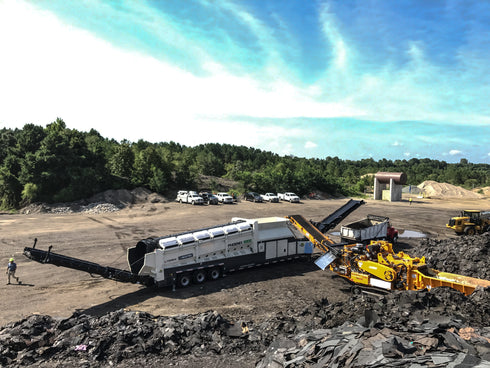

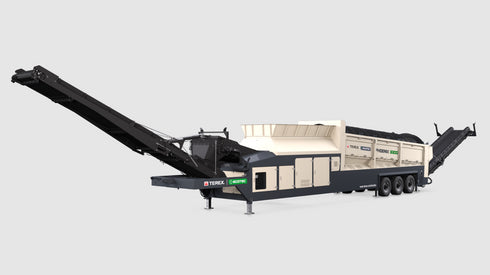

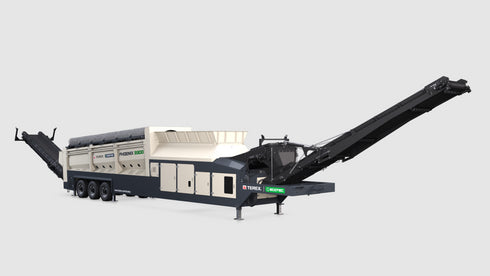

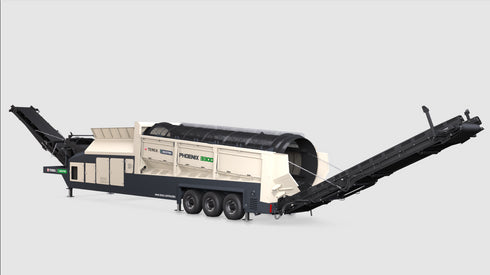

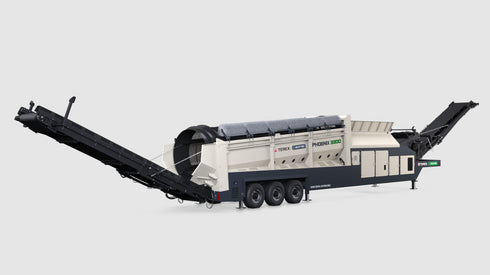

Ecotec's Phoenix 3300 is the largest Trommel Screener available within the range, robustly designed it offers optional features such as a heavy duty tipping grid or double deck vibrating grid. It performs equally well in heavy C&D applications as it does in high volume compost production. The 180° swivel fines conveyor, with a 5.8m (19’) discharge, result in the generation of massive stockpiles. This swivel feature can be controlled via a radio remote whilst the trommel screen is in operation, minimising downtime.
A powerful four wheel drive system with high performance friction grip wheels is used to turn the trommel drum giving operators the ability to run bi-directionally. Woven mesh or heavy duty punch plate panels can be fitted to the trommel drum ensuring all application requirements are met.
Caterpillar Tier 3 or Tier 4 engines combined with powerful hydraulics and auto feeder speed control guarantee the machine is always working at its optimum level. A fifth wheel connection, triple axle bogie and a rapid set up time make the Phoenix 3300 highly mobile.
Features & Benefits
- Remote Operated 180 Degree Radial Fines Conveyor
- Excellent service access
- Tipping and vibrating grid options
- High capacity feed hopper
- Intelligent feed control
- Variable speed drum drive system
- Adjustable self cleaning brushes
- Mesh or punch plate panels
- Variable speed oversize conveyor
Specification Table
Engine
|
CAT C7.1 202HP Tier 3 / CAT C7.1 151 kW Tier 3 |
Engine
|
CAT C4.4 173 HP Tier 4 Final / CAT C4.4 129kW Tier 4 Final
|
Drum Diameter
|
7'7" / 2,320mm
|
Drum Length
|
30'7" / 9,320mm
|
| Weight |
82,673lbs / 37,500kg
|
* All information subject to machine configurations & specifications ordered.
** ECOTEC reserves the right to change specifications without prior notice.
