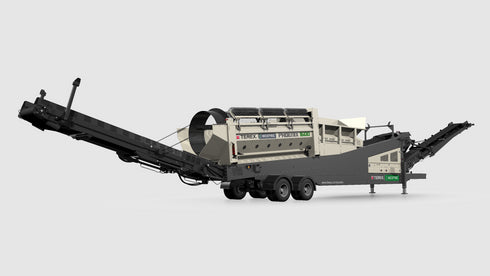

ECOTEC PHOENIX 1600 TROMMEL SCREEN

PRODUCT TYPE: Trommel

VENDOR: Terex Ecotec

CLICK HERE to download brochure
CLICK HERE to view video
Ecotec's Phoenix 1600 Trommel screener has been innovatively designed to provide excellent fuel efficiency and low operating costs, whilst also reducing emissions and noise levels due to the machine running at a low engine RPM.  With a 4.9m (16') x 1.54 (5') drum, unrivalled production throughput is guaranteed due to the large screening area.  Highly versatile the Phoenix 1600 can easily screen a variety of material including topsoil, compost, sand and gravel, wood chip and C&D waste.  Woven mesh or heavy duty punch plate panels can be fitted to the drum ensuring all application requirements are met.

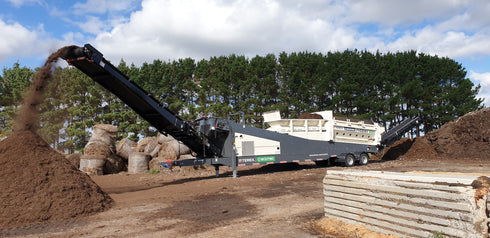

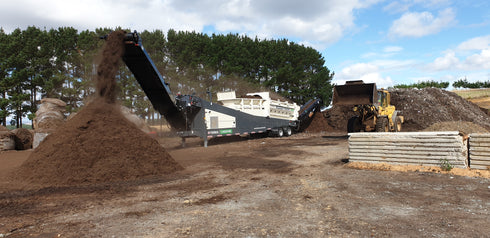

The 180° swivel fines conveyor, with a discharge height of 5.9m (19'4") results in the creation of impressive stockpiles.This swivel feature can be controlled via a remote while the machine is in operation, minimising downtime.  The powerful four wheel drive system with high performance friction wheels is used to turn the trommel drum giving operators the ability to run bi-directionally.

Powered by a Caterpillar C4.4 engine (Tier 4 Final Constant Speed) the powerful hydraulics and intelligent feed control system ensure the Phoenix 1600 is always working at its optimum.

Features & Benefits
  • Variable speed oversize conveyor
  • Mesh or punch plate panels
  • Adjustable self cleaning brushes
  • Variable speed drum drive system
  • High capacity feeder hopper
  • Intelligent feed control
  • Tipping grid option
  • Excellent service access
  • Low engine RPM & Fuel save system
  • Remote operated 180 degree radial fines conveyor
Specification Table
Engine
CAT c4.4 130HP Tier 3 / CAT c4.4 97kW Tier 3
Engine
CAT C4.4 110HP Tier 4 Final / CAT C4.4 82kW Tier 4 Final
Drum Diameter
5' / 1,540mm
Drum Length
16' / 4,900mm
Weight 39,700lbs / 18,000kg

* All information subject to machine configurations & specifications ordered.

** ECOTEC reserves the right to change specifications without prior notice.
