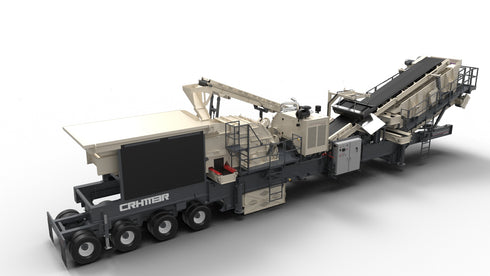

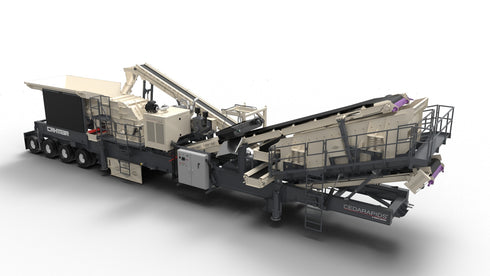

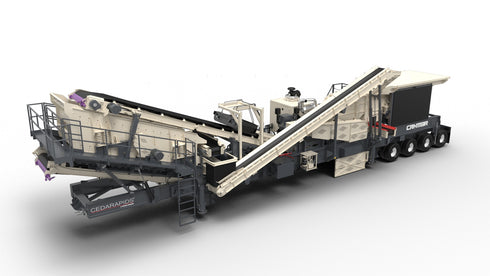

CRH1113R Portable Impactor & Screen Plant

PRODUCT TYPE: Impact Crusher

VENDOR: Cedarapids

CLICK HERE to download brochure
CLICK HERE to view video


The CRH1113R Portable Closed Circuit Impactor/Screen Plant features the TI4250 impact crusher and a 6x16 2-deck inclined screen. The crusher is hydraulic clutch driven direct from a 450hp Scania diesel. All other components are electric driven from the 150kw generator. The brand new crusher, large screen & feeder, and low maintenance electric driven components make this one piece towable machine a great value for processing shot rock as well as concrete and asphalt recycle materials.


Features & Benefits

  • TI4250 impact crusher
  • 6’ x 16’ 2-deck screen
  • 450 hp T4F Scania Diesel with hydraulic clutch crusher/generator drive
  • 150 kW generator
  • 48” x 18’ vibrating grizzly feeder with 6’ stepped 2-deck grizzly
  • 24” reversible conveyors can feed both screen decks to return conveyor
  • Gas powered hydraulic leveling jacks & screen lift
  • Removable CCM automatic switchgear panel


    •  48” x 144” VM Series pan feeder and double deck pre-screen (replaces standard VGF)
    • Undercrusher pan feeder
    • Off-plant starters & radio remote
    • Screen platforms & ladder
    • Dual pinned hydraulic run-on jacks
    • Economical self-cleaning cross belt permanent magnet, mid plant
    • Rolling grizzly reject conveyor with 6’ discharge
    • Various grizzly options for bar spacing, punch plate, & 2nd deck wire
    • All electric (no diesel)

      Specification Table


      Weight (Est)

      133,485 lbs

      Transport width


      Transport length


      Transport height

      13' 11"

      Working width


      Working length

      74' 4"

      Working height

      18' 10'

      * All information subject to machine configurations & specifications ordered.

      ** Terex Cedarapids reserves the right to change specifications without prior notice
