CT100 Track Conveyor

PRODUCT TYPE: Conveyor

VENDOR: Powerscreen

CLICK HERE to download brochure
CLICK HERE to view video
DESCRIPTION

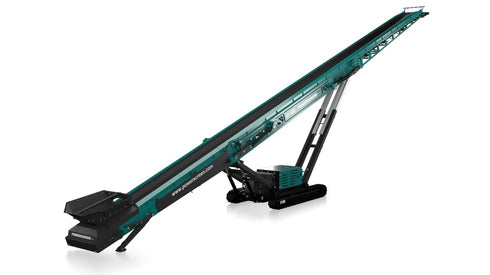

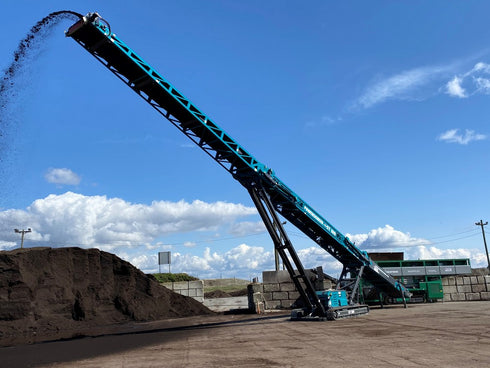

The Powerscreen CT100 100ft stacker, builds on the hugely successful Powerscreen CT65 & CT80 conveyors with extra length and capacity. The extra length of conveyor, and increased power, allows for maximum mobility and flexibility, reducing or eliminating the use of wheeled loaders on site. The conveyor can cope with all applications, from light duty screened material, through to jaw applications. Although the conveyor is 100ft long, it still retains the ability to be transported worldwide in a 40ft container meaning convenience and keeping shipping costs low. The Powerscreen® range of mobile conveyors are designed to work in conjunction with the entire range of Powerscreen crushing and screening equipment. Using conveyors or stackers means increased stockpile capacity and reduces on-site material handling.

    Features

    • Self powered diesel hydraulic tracked conveyor
    • Steel lined feedboot as standard providing extended wear life.
    • Full hydraulic set-up, no crane required
    • Containerised, track in/track out
    • Hydraulic adjustment for variable feed height reduces impact and provides optimal material transfer
    • Dual speed tracks for quick and controlled deployment
    • Fully protected power unit with easy access for service and maintenance

      Options

      • Rubber feedboot liners
      • Feedboot extensions
      • Impact bed at feedboot
      • Impact rollers at feedboot
      • High spec discharge conveyor head drum scraper
      • Chevron belt
      • High spec discharge conveyor head drum scraper
      • Head drum guards
      • Under guards
      • Dust covers
      • Dust suppression water spray at head drum
      • Conveyor drive - direct electric
      • Full length skirting
      • Pull cord emergency stop along length of conveyor

        Specification Table

        CT100

        Belt length

        98'

         5"Belt Width

        41"

        Transport width

        9' 2"

        Transport length (head folded)

        39'

        Transport height (head folded, tow)

        11' 3"

        Discharge height

        43'

        Max angle

        25deg

        * All information subject to machine configurations & specifications ordered.

        ** Powerscreen reserves the right to change specifications without prior notice.
