ECOTEC TBG 630 HIGH SPEED SHREDDER

PRODUCT TYPE: High Speed Shredder

VENDOR: Terex Ecotec

CLICK HERE to download brochure
CLICK HERE to view video

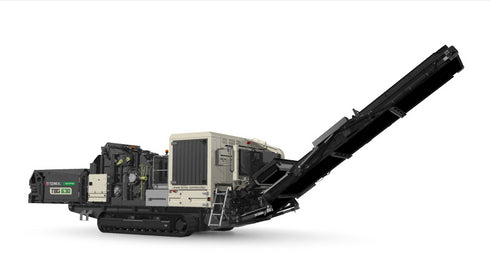

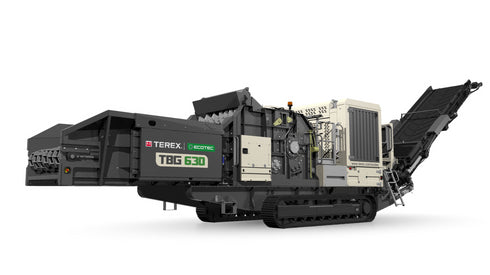

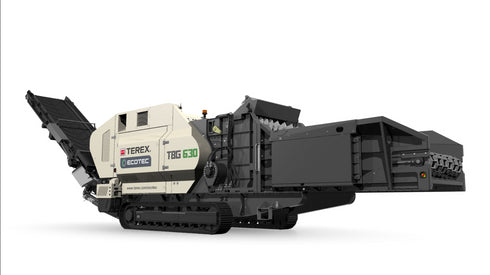

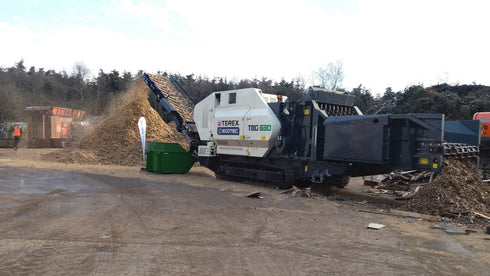

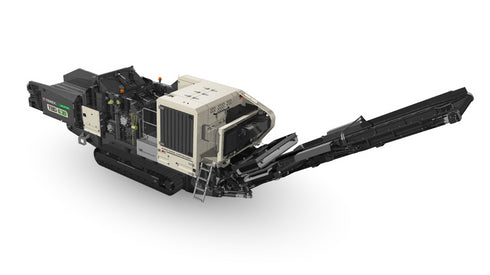

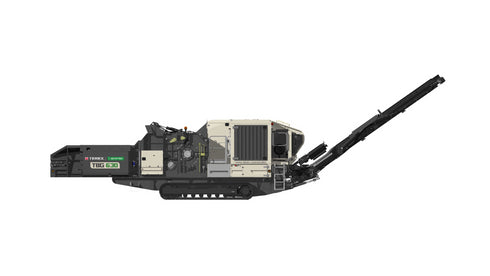

Ecotec's TBG 630 High Speed Shredder is the ultimate processing machine for medium to large scale biomass and green waste processors.  Powered by a 661HP V8 Scania engine, the TBG 630 has been designed to give operators unrivalled production rates and ease of maintenance.  The open fronted feeder uses heavy duty drag chains, a powerful feed wheel and an unrestricted feeder design to effectively utilize the 1,100mm diameter x 1,750mm wide swinging hammer rotor.  This robust rotor comes with a wide selection of hammer designs and customizable screens which ensure end product material specification is met.

Metal contaminants are always a concern when using a high speed machine; the TBG 630 has an intelligent screen opening system to quickly discharge such contaminants reducing the risk of accidental damage.  The unique machine layout and maintenance catwalks offer unrestricted access to both sides of the engine making servicing a simple task.  Industry leading conveyor discharge height of 5.1m maximizes stockpile capacity and allows loader operators to easily remove processed material

Features & Benefits
  • 1000 rpm Upturn Rotor
  • 36 Swinging Hammers
  • Extra-large screening area with kickback for unshreddable material

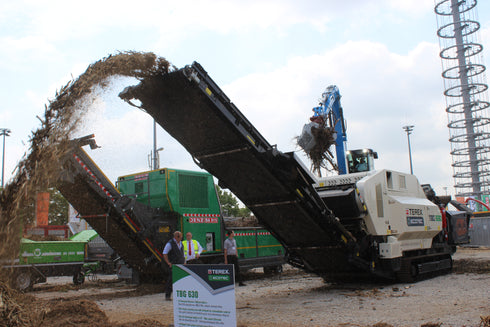

  • Over 5m discharge height at 35 deg - Max speed 220m/min
  • Intelligent feed system and feed wheel lift downward assist
  • Unrivalled service access
  • Scania DC16 500kW (670HP) Stage V
Specification Table
Infeed Dimensions 2'7" high x 5'7" wide / 780mm x 1,700mm
Engine
Scania DC16 670HP Stage V / Scania DC16 500kW Stage V
Engine
Scania DC16 661HP Tier Final / Scania DC16 493kW Tier 4 Final
Engine Scania DC16 690HP Stage II / Scania DC16 515kW Stage II
Weight
78,485lbs / 35,600kg

* All information subject to machine configurations & specifications ordered.

** ECOTEC reserves the right to change specifications without prior notice.
